Discharge Headlight Control Module Removal/Installation

CAUTION:

• Incorrect servicing of the discharge headlight control module could result in electrical shock. Before servicing the discharge headlight control module, always refer to the "Discharge headlight service warnings." (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)

1. Disconnect the negative battery cable.
2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
4. Remove the screws A.
5. Disconnect the connector A.

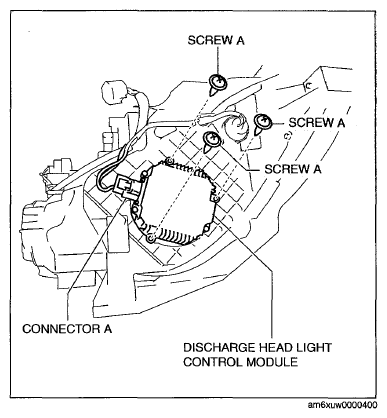

   Fig 1: Discharge Headlight Control Module, Connector A And Screws A

   Courtesy of MAZDA MOTORS CORP.
6. Remove the screws B.
7. Disconnect the connector B.
8. Remove the discharge headlight control module.

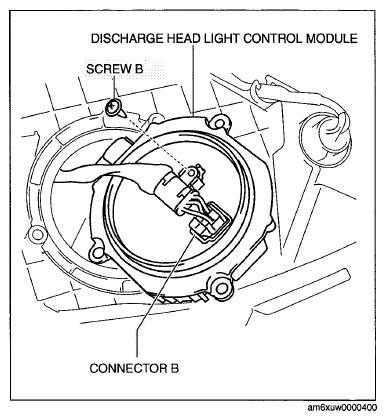

   Fig 2: Discharge Headlight Control Module, Connector B And Screws B

   Courtesy of MAZDA MOTORS CORP.
9. Remove the cover.
   Fig 3: Removing Cover

   Courtesy of MAZDA MOTORS CORP.
10. Rotate the connector in the direction of the arrow shown in the illustration to remove it.

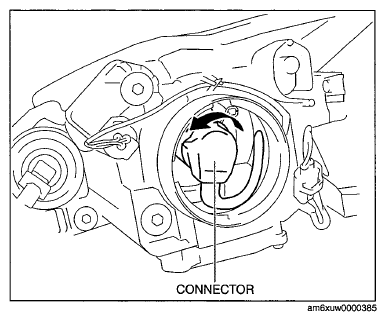

    Fig 4: Rotating Connector

    Courtesy of MAZDA MOTORS CORP.
11. Remove the short cord.
12. Install in the reverse order of removal.

Fig 5: Short Cord

Courtesy of MAZDA MOTORS CORP.
