Keyless Entry System Check Sheet [Advanced Keyless Entry And Push Button Start System]

• Use the sheet below as a customer interview sheet when accepting a vehicle for service.
• If the symptom is "Power door lock system does not operate with transmitter at all," find out how the customer uses the keyless entry system by following the check sheet below.

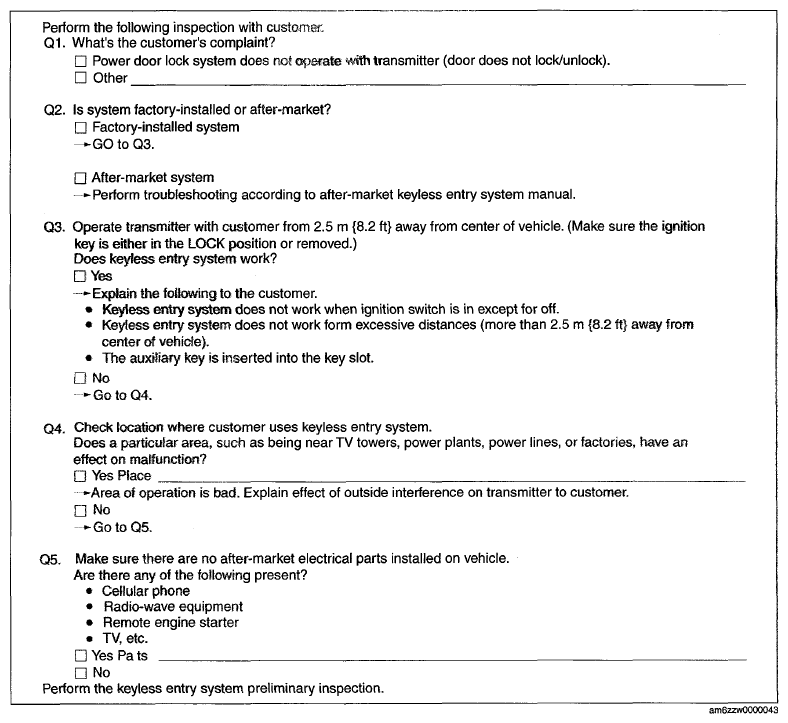

Fig 1: Keyless Entry System Check Sheet [Advanced Keyless Entry And Push Button Start System]

Courtesy of MAZDA MOTORS CORP.
