Repair and Diagnosis (Single Page)
›
Electrical
›
Body Electrical
›
OEM Connector End Views (2.5L)
›
Connector End Views
›
Relay Block And BSM Control Module Connector End View
Relay Block And BSM Control Module Connector End View

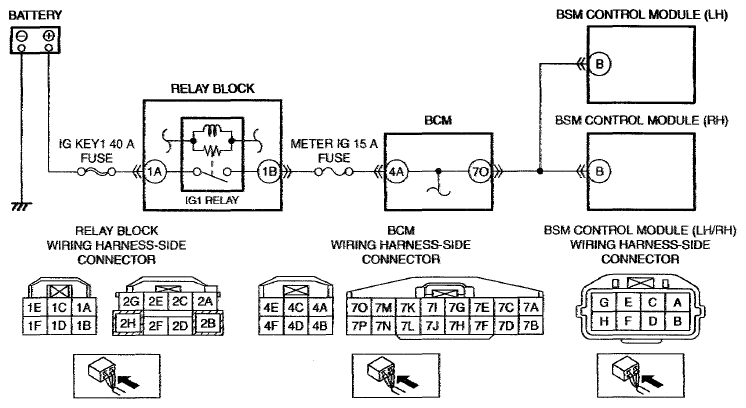

Fig 1: Relay Block And BSM Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
