On-Board Diagnostic [Engine Control System MZR 2.5]
›
Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart

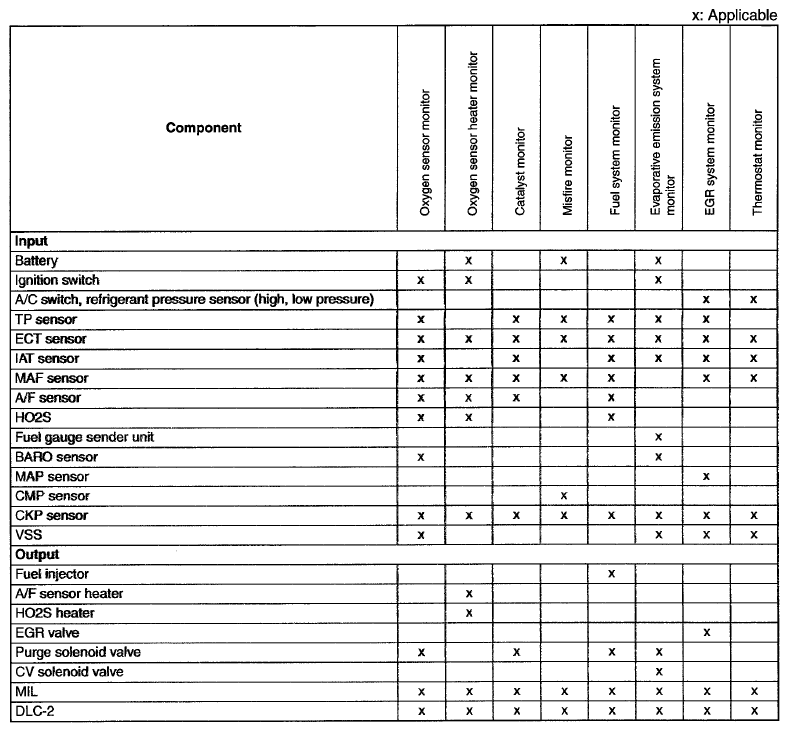

Fig 1: Monitoring System And Control System Device Relationship Chart
