Door Lock Switch Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
4. Remove the inner handle. (See INNER HANDLE REMOVAL/INSTALLATION .)
5. Remove the screws, then remove the door lock switch.
6. Install in the reverse order of removal.

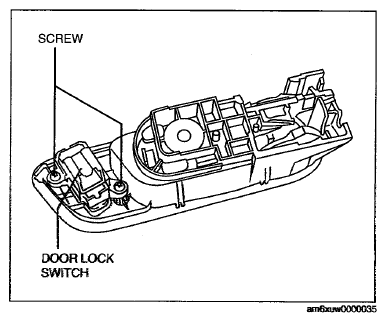

Fig 1: Door Lock Switch And Screw

Courtesy of MAZDA MOTORS CORP.
