Replace the steering lock unit
Replace the steering lock unit. (See
STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
.) (See
STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
.) |
Go to the next step. |
| 2 |
Connect the M-MDS (IDS)
- Connect the M-MDS (IDS) to the DLC-2.
- Remove the valid keys or valid advanced keys from the vehicle (keep them 1 m or more from the vehicle), and switch the ignition on according to the directions on the M-MDS screen. Select, "There is no programmed ignition key and programmed advanced key" from the M-MDS screen.
CAUTION:
- The engine cannot be started if the ignition is switched ON by selecting "Special Service Mode", however, this does not indicate a malfunction. Continue to perform the procedure as indicated.
- Although the security light or the keyless warning light (red) illuminates or flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
|
Go to the next step. |
| 3 |
PERFORM STEERING LOCK UNIT PROGRAMMING
- Select "Steering lock unit programming" from the M-MDS screen.
- Bring the programmed advanced key into the vehicle.
- Complete the security access procedure and the steering lock unit programming according to the directions on the M-MDS screen.
(See
STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
- After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Finish (this menu)".
- Switch the ignition off.
- Disconnect the M-MDS from the DLC-2.
- Remove the programmed card key from the vehicle.
|
Go to the next step. |
| 4 |
ESTABLISH THE IMMOBILIZER SYSTEM WITH KEY 1
NOTE:
- By starting the engine, the immobilizer system is established and key programming is finished.
- Start the engine using key 1.

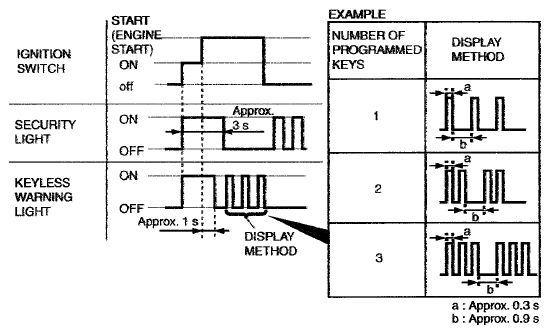

- Verify that the security light and keyless warning light operate as shown in the following illustration.
- Switch the ignition off and remove key 1.
|
Go to the next step. |
| 5 |
VERIFY THAT ANY KEY IS PROGRAMMED
- Start the engine using key 2.
- Verify that the security light and keyless warning light operate as shown in the following illustration.
- Switch the ignition off and remove key 2.
- Are there other keys to be programmed?
|
Yes |
Repeat Step 5 using each programmed key. |
| No |
Go to the next step. |
| 6 |
VERIFY THAT ANY ADVANCED KEY IS PROGRAMMED
- Bring the programmed advanced key into the vehicle.
- Close all doors.
- Remove the key from the key slot and place it on the front passenger's seat.
- Start the engine using the advanced key.
- Verify that the security light and keyless warning light operate as shown in the following illustration.
- After verifying that the keyless warning light turns off, switch the ignition off.
|
Procedure is completed |
