Vehicle Interior, Front

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel (See. 09-17-24 UPPER PANEL REMOVAL/INSTALLATION.)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION .)
    6. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
  3. Disconnect the connector.
  4. Remove the keyless antenna.
  5. Install in the reverse order of removal.

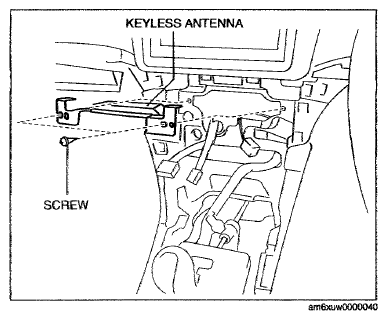

Fig 1: Keyless Antenna And Screw
G07622172Courtesy of MAZDA MOTORS CORP.
