Keyless Beeper Removal/Installation [Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable.
2. Slightly bend back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
3. Disconnect the connector.
4. Remove the blot.

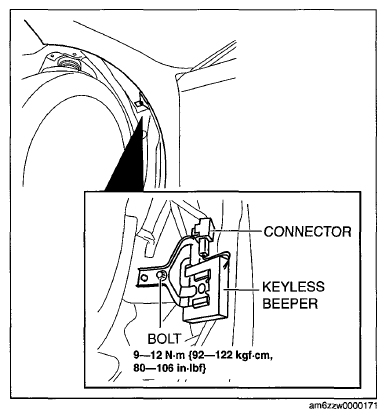

   Fig 1: Keyless Beeper, Connector And Nut With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
5. Press the keyless beeper tab aside using a tape-wrapped flathead screwdriver.
6. Remove the keyless beeper from the bracket.
7. Install in the reverse order of removal.

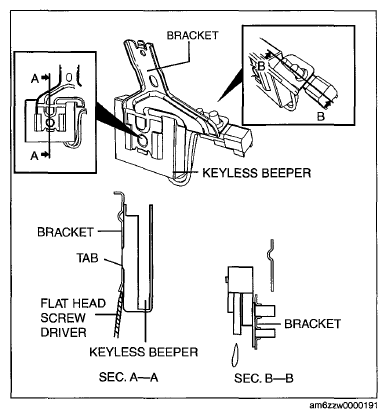

Fig 2: Pressing Keyless Beeper Tab Using Tape-Wrapped Flathead Screwdriver

Courtesy of MAZDA MOTORS CORP.
