Keyless Receiver Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
3. Remove in the order indicated in the table.
   CONNECTOR TERMINALS REFERENCE CHART



   1	Connector
   2	Nut
   3	Keyless receiver

4. Install in the reverse order of removal.

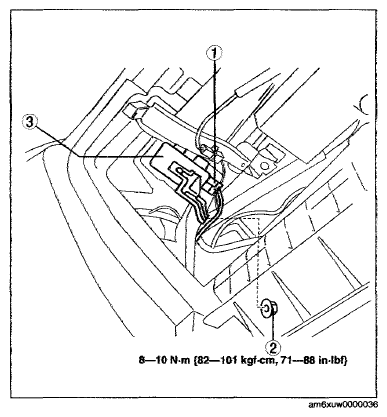

Fig 1: Keyless Receiver, Connector And Nut With Torque Specification

Courtesy of MAZDA MOTORS CORP.
