Coil Antenna Removal/Installation [Advanced Keyless Entry And Push Button Start System]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the coil antenna connector.
  4. Remove the screw.
  5. Detach the coil antenna hooks and remove the coil antenna from the steering lock
  6. Install in the reverse order of removal

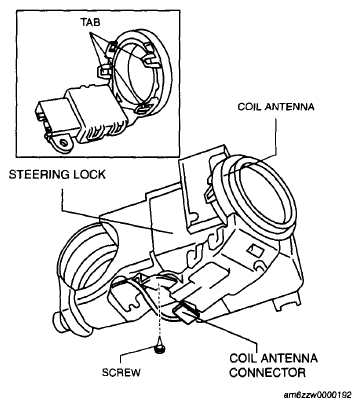

Fig 1: Identifying Coil Antenna Components (Advanced Keyless Entry And Push Button Start System)
G06200997Courtesy of MAZDA MOTORS CORP.
