Clearance Inspection

1. Measure the gap between the ABS sensor rotor and ABS wheel-speed sensor using a feeler gauge.

• If not within the specification, verify the following items and repair or replace if necessary.

• Is there deformation or damage to the ABS sensor rotor?
• Is there deformation or damage to the ABS wheel speed sensor?
• Is there foreign material adhering?

Clearance

0.6-1.5 mm {0.03-0.05 in}

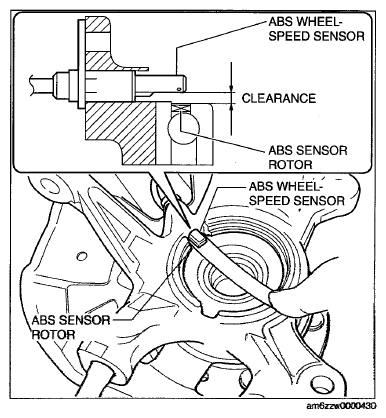

Fig 1: Measuring Clearance Between ABS Sensor Rotor And ABS Wheel-Speed Sensor Using Feeler Gauge

Courtesy of MAZDA MOTORS CORP.
