Pcm Removal/Installation
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)

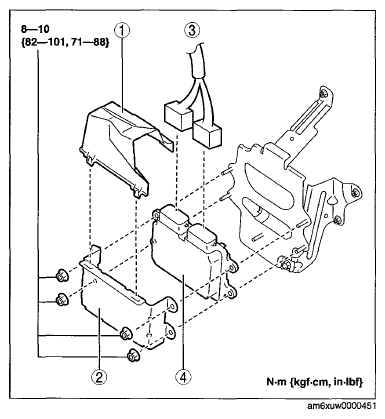

- Remove in the order indicated in the table.PCM PARTS REFERENCE CHART
1 PCM cover No. 1 2 PCM cover No. 2 3 Connector 4 PCM - Install in the reverse order of removal.
- When replacing the PCM on the vehicles, perform the following:
- PCM configuration (See PCM CONFIGURATION .)
- Immobilizer system component replacement/key addition and clearing (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM] .) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
