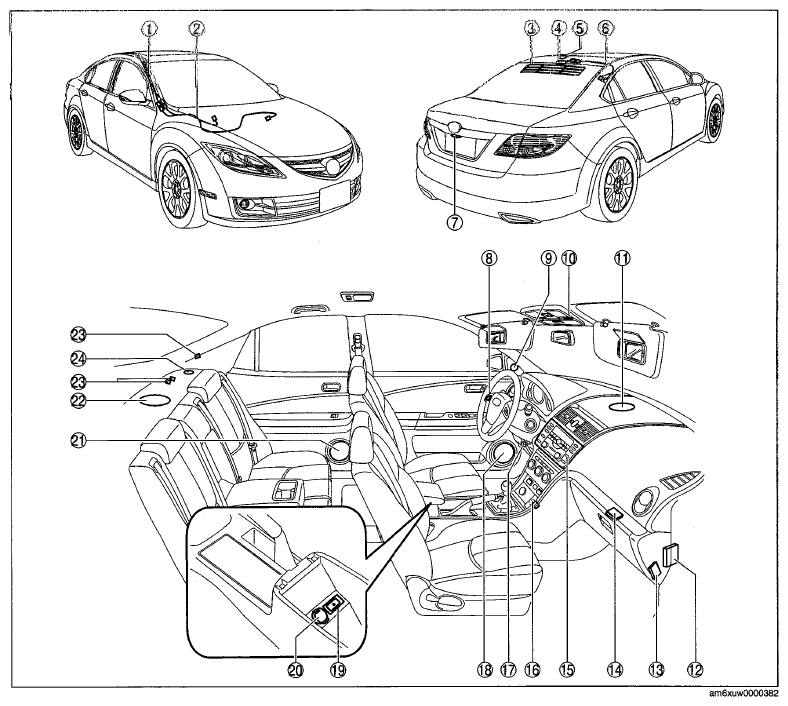

| 1 |
Antenna feeder No. 2
(See
ANTENNA FEEDER LOCATION .)
(See
ANTENNA FEEDER NO. 2 REMOVAL/INSTALLATION .)
(See
ANTENNA FEEDER NO. 2 INSPECTION .) |
| 2 |
Antenna feeder No. 1
(See
ANTENNA FEEDER LOCATION .)
(See
ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION .)
(See
ANTENNA FEEDER NO. 1 INSPECTION .) |
| 3 |
Glass antenna
(See
GLASS ANTENNA INSPECTION .) |
| 4 |
Antenna amplifier
(See
ANTENNA AMPLIFIER REMOVAL/INSTALLATION .)
(See
ANTENNA AMPLIFIER INSPECTION .) |
| 5 |
SIRIUS satellite radio antenna (with SIRIUS satellite radio system)
(See
SIRIUS SATELLITE RADIO ANTENNA REMOVAL/INSTALLATION .)
(See
SIRIUS SATELLITE RADIO ANTENNA INSPECTION .) |
| 6 |
Antenna feeder No. 3
(See
ANTENNA FEEDER LOCATION .)
(See
ANTENNA FEEDER NO. 3 REMOVAL/INSTALLATION .)
(See
ANTENNA FEEDER NO. 3 INSPECTION .) |
| |
Rear mount camera (with audio unit (with display))
(See
REAR MOUNT CAMERA REMOVAL/INSTALLATION .) |
| 8 |
Steering switch
(See
STEERING SWITCH REMOVAL/INSTALLATION .)
(See
STEERING SWITCH INSPECTION .) |
| 9 |
Tweeter
(See
TWEETER REMOVAL/INSTALLATION .)
(See
TWEETER INSPECTION .) |
| 10 |
Microphone (with Bluetooth system)
(See
MICROPHONE REMOVAL/INSTALLATION .) |
| 11 |
Front center speaker (with Bose®)
(See
FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
(See
FRONT CENTER SPEAKER INSPECTION .) |
| 12 |
Audio amplifier (with Bose®)
(See
AUDIO AMPLIFIER REMOVAL/INSTALLATION .) |
| 13 |
Bluetooth unit (with Bluetooth system)
(See
BLUETOOTH UNIT REMOVAL/INSTALLATION .) |
| 14 |
SIRIUS satellite radio unit (with SIRIUS satellite radio system)
(See
SIRIUS SATELLITE RADIO UNIT REMOVAL/INSTALLATION .) |
| 15 |
Audio unit
(See
AUDIO UNIT REMOVAL/INSTALLATION .)
(See
ENTERTAINMENT PERSONALIZATION FEATURES SETTING PROCEDURE .) |
| 16 |
Accessory socket (front)
(See
ACCESSORY SOCKET REMOVAL/INSTALLATION .)
(See
ACCESSORY SOCKET INSPECTION .) |
| 17 |
AudioPilot® 2 microphone (with Bose®)
(See
AUDIOPILOT® 2 MICROPHONE REMOVAL/INSTALLATION .) |
| 18 |
Front door speaker
(See
FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
(See
FRONT DOOR SPEAKER INSPECTION .) |
| 19 |
Auxiliary jack
(See
AUXILIARY JACK REMOVAL/INSTALLATION .)
(See
AUXILIARY JACK INSPECTION .) |
| 20 |
Accessory socket (rear)
(See
ACCESSORY SOCKET REMOVAL/INSTALLATION .)
(See
ACCESSORY SOCKET INSPECTION .) |
| 21 |
Rear door speaker
(See
REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
(See
REAR DOOR SPEAKER INSPECTION .) |
| 22 |
Rear center speaker (with Bose®)
(See
REAR CENTER SPEAKER REMOVAL/INSTALLATION .)
(See
REAR CENTER SPEAKER INSPECTION .) |
| 23 |
Condenser
(See
CONDENSER REMOVAL/INSTALLATION .) |
| 24 |
Rear speaker (with Bose®)
(See
REAR SPEAKER REMOVAL/INSTALLATION .)
(See
REAR SPEAKER INSPECTION .) |
