Key Interlock Solenoid Inspection

CAUTION:

Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

Disconnect the key interlock solenoid connector.
1. Disconnect the negative battery cable.
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
3. Disconnect the key interlock solenoid connector.

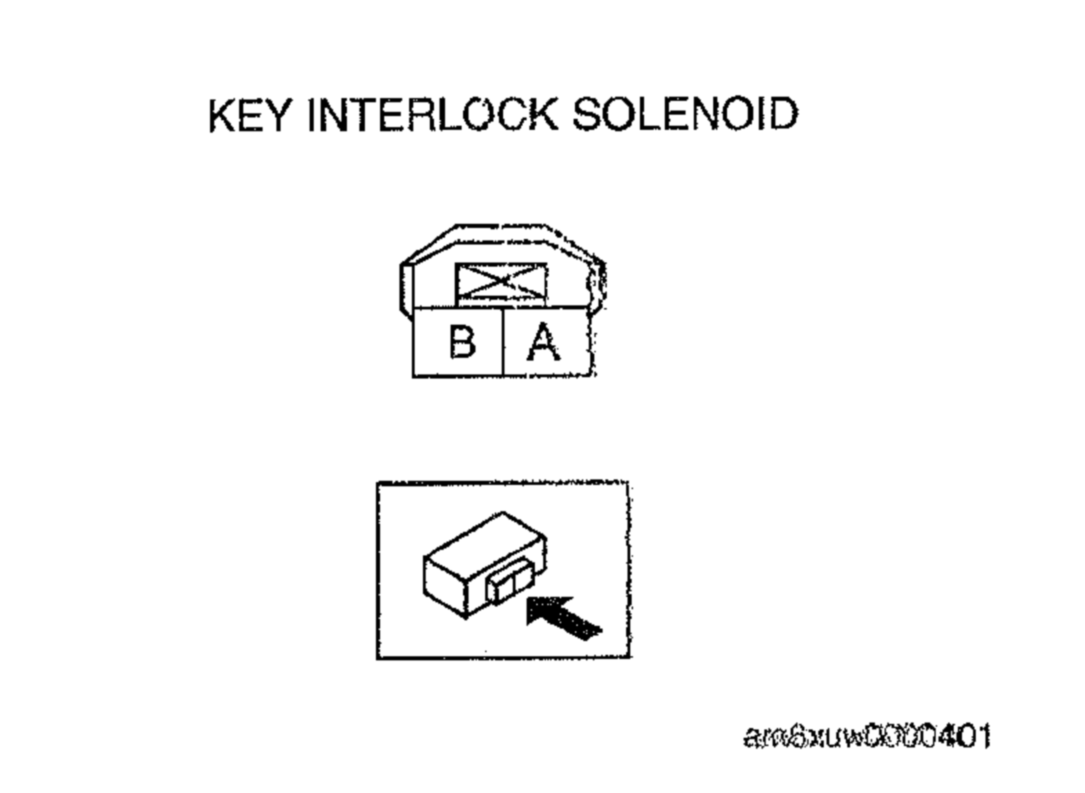

Fig 1: Key Interlock Solenoid Connector
Courtesy of MAZDA MOTORS CORP.
Measure the resistance between key interlock solenoid terminals A and B.
- If there is any malfunction, replace the steering lock. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
Key interlock solenoid specification

22.95-28.05 ohms

Fig 2: Key Interlock Solenoid
Courtesy of MAZDA MOTORS CORP.
