Not Using M-MDS
Applied VIN (assumed):
- JM3 ER2W3*A# 300001-300162
- JM3 ER2W5*A# 300001-300162
- JM3 ER2WL*A# 300001-300162
- JM3 ER2WM*A# 300001-300162
- JM3 ER4W3*A# 300001-300162
- JM3 ER4WL*A# 300001-300162
Auto door lock system
AUTO DOOR LOCK SYSTEM REFERENCE
| Setting content | Function | Initial setting | Control unit |
|---|---|---|---|
| Disabled | Auto lock/unlock function can be changed. | Auto door lock operation based on vehicle speed. Auto door unlock operation based on ignition switch position. | BCM |
| Auto door lock operation based on vehicle speed. | |||
| Auto door lock operation based on vehicle speed. Auto door unlock operation based on ignition switch position. | |||
| Auto door lock operation based on shift position. | |||
| Auto door lock operation based on shift position. Auto door unlock operation based on shift position. |

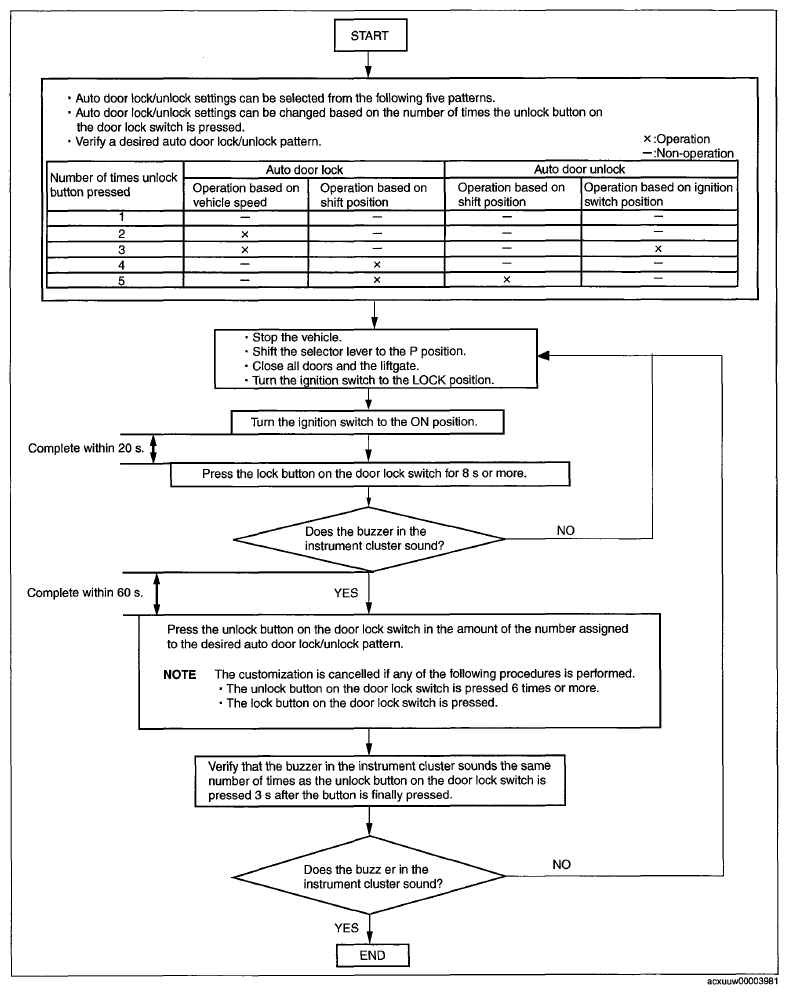

Setting procedure
