Rear Abs Wheel-Speed Sensor Removal/Installation [AWD]

Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table in the illustration.
Install in the reverse order of removal.

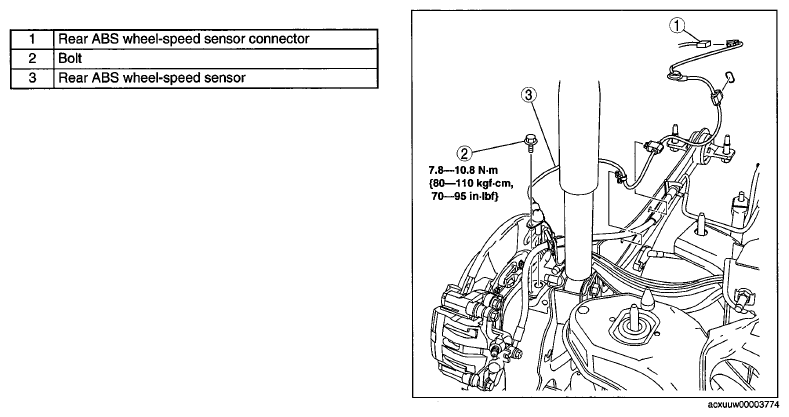

Fig 1: Locating Rear ABS Wheel-Speed Sensor, Connector And Bolts With Torque Specifications (AWD)
Courtesy of MAZDA MOTORS CORP.
