Power Outer Mirror Switch Inspection
- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)

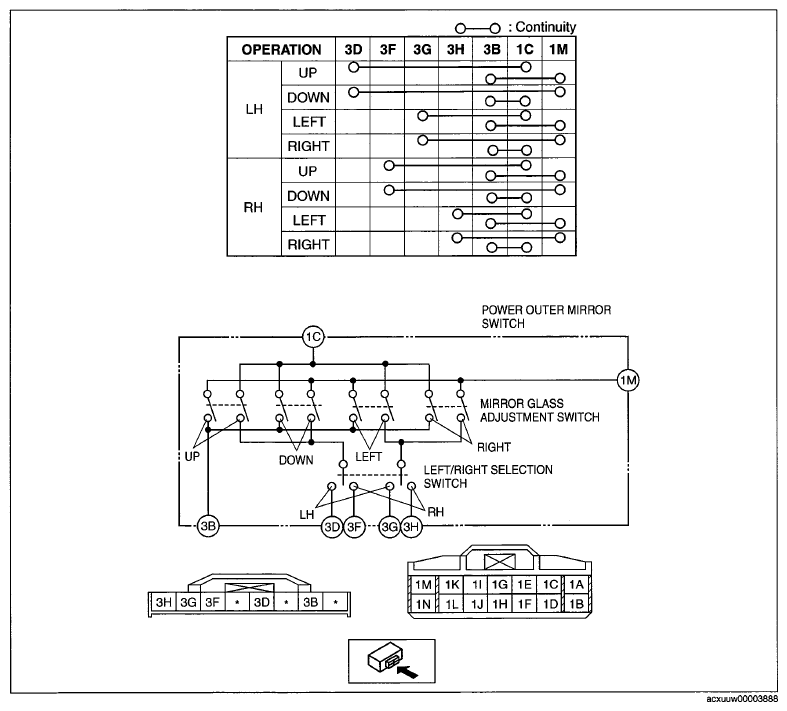

- Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table in the illustration.
- If not as indicated in the table, replace the power outer mirror switch.
