Engine Control System [L3 With TC]
›
Control System Component Location Index
Control System Component Location Index

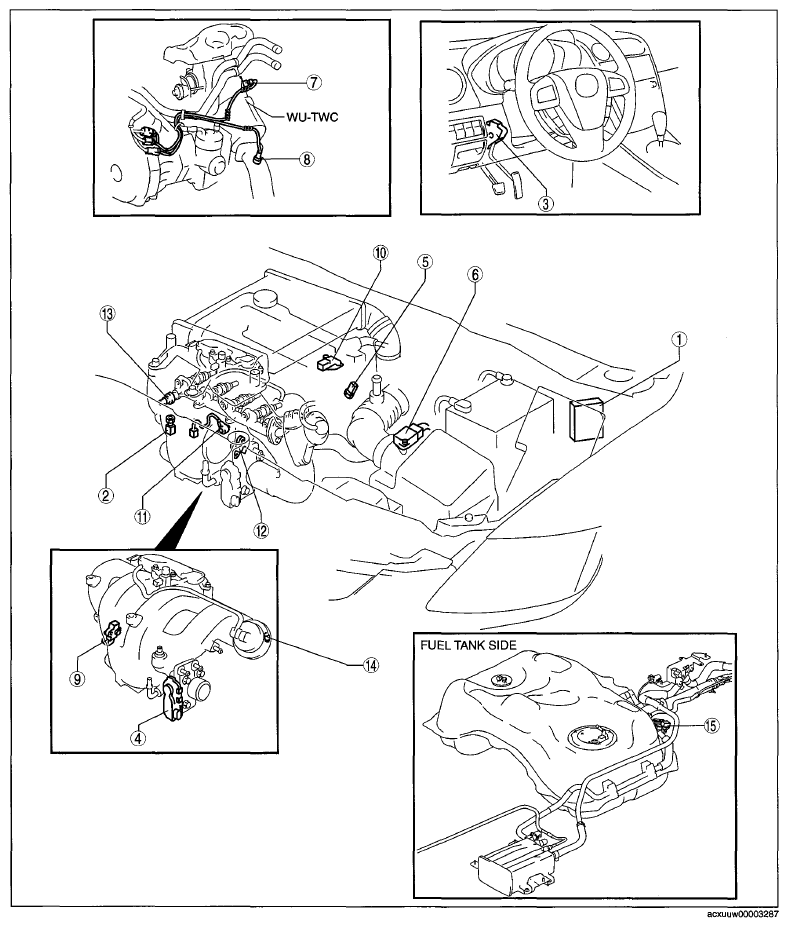

Fig 1: Control System Components Location (L3 With TC)
Courtesy of MAZDA MOTORS CORP.

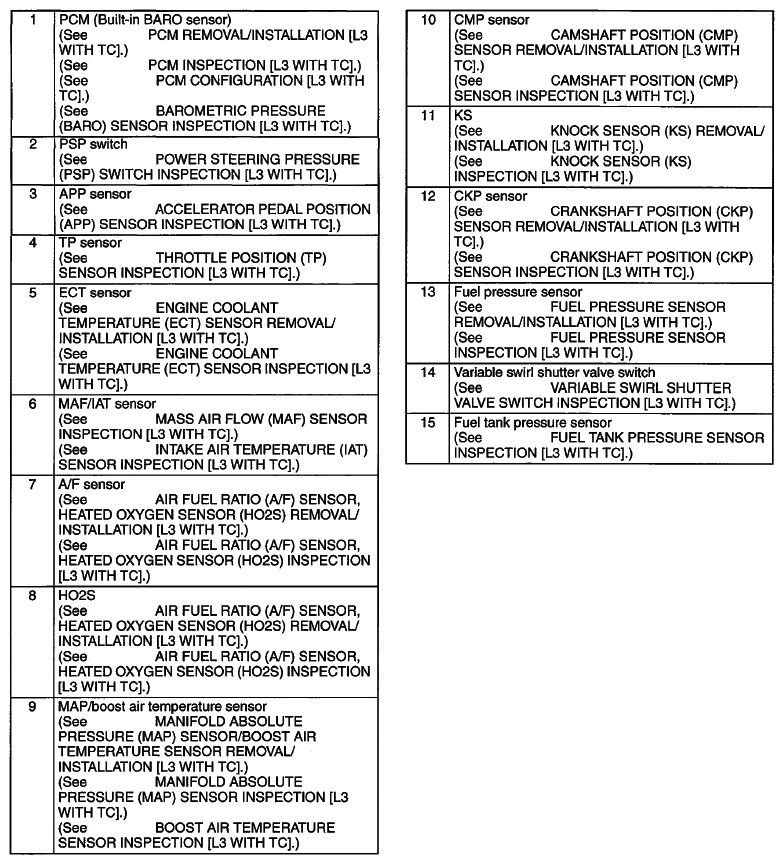

Fig 2: Control System Legends
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
