REPLACE STEERING LOCK UNIT
Replace the steering lock unit.
(See
STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION
.) |
Go to the next step. |
| 2 |
CONNECT THE M-MDS
- Connect the M-MDS to the DLC-2.
(See
M-MDS CONNECTING PROCEDURE .)
- Remove the valid keys and the valid advanced keys from the vehicle (keep them 1 m or more from the vehicle) and turn the ignition switch to the ON position according to the directions on the M-MDS screen. Select, "There is no programmed ignition key and programmed advanced key" from the M-MDS screen.
CAUTION:
- If the ignition is switched ON by selecting "FORCED IGNITION ON", the engine cannot be started.
- Although the security light or the keyless warning light illuminates or flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
|
Go to the next step. |
| 3 |
PROGRAM STEERING LOCK UNIT
- Select "Steering Lock Unit Programming" from the M-MDS screen menu.
- Bring the advanced keys into the vehicle.
- Complete the security access procedure and the steering lock unit programming according to the directions on the M-MDS screen.
(See
STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND START SYSTEM] .)
- After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Finish (this menu)".
- Turn the ignition switch to the LOCK position.
- Disconnect the M-MDS from the DLC-2.
- Remove the programmed advanced keys from the vehicle.
|
Go to the next step. |
| 4 |
SET UP IMMOBILIZER SYSTEM WITH KEY 1
NOTE:
- By starting the engine, the immobilizer system is set up and key programming is finished.
- Start the engine using key 1.

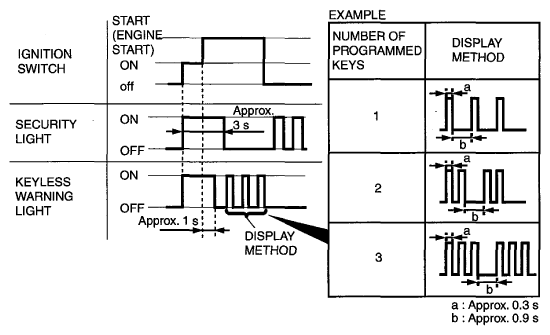

- Verify that the security light and keyless warning light operate as shown in the following illustration.
- Turn the ignition switch to the LOCK position and remove key 1.
 Courtesy of MAZDA MOTORS CORP.
|
Go to the next step. |
| 5 |
VERIFY THAT KEY IS PROGRAMMED
- Start the engine using key 2.
- Verify that the security light and keyless warning light operate as shown in the following illustration.
- Turn the ignition switch to the LOCK position and remove key 2.
- Are there other keys to be programmed?
 Courtesy of MAZDA MOTORS CORP.
|
Yes |
Repeat Step 5 using each programmed key. |
| No |
Go to the next step. |
| 6 |
VERIFY THAT ADVANCED KEY IS PROGRAMMED
- Bring the advanced key into the vehicle.
- Close all doors.
- Remove the key from the key slot and place it on the front passenger's seat.
- Start the engine using the advanced key.
- Verify that the security light and keyless warning light operate as shown in the following illustration.
- After verifying that the keyless warning light turns off, turn the ignition switch to the LOCK position.
 Courtesy of MAZDA MOTORS CORP.
|
Procedure is completed. |
