Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
    • If not as indicated in the article, replace the power outer mirror switch.
      Fig 1: Power Outer Mirror Switch Terminals Continuity Chart
      G04971171Courtesy of MAZDA MOTORS CORP.

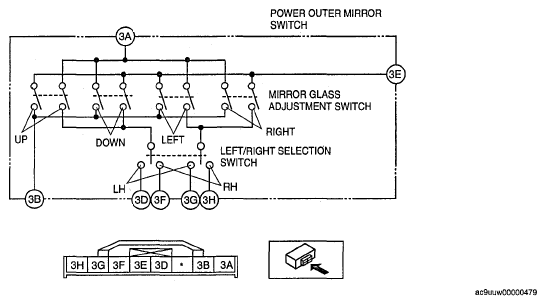

      Fig 2: Power Outer Mirror Switch Circuit Diagram
      G04971172Courtesy of MAZDA MOTORS CORP.
