DTC P0113: IAT Sensor Circuit High Input: Notes

DTC P0113 (MZI-3.7)

DTC P0113	IAT sensor circuit high input
DETECTION CONDITION	Indicates the sensor signal is more than the self-test maximum. The IAT sensor maximum is 4.6 V or -50 °C {-58 °F}  .

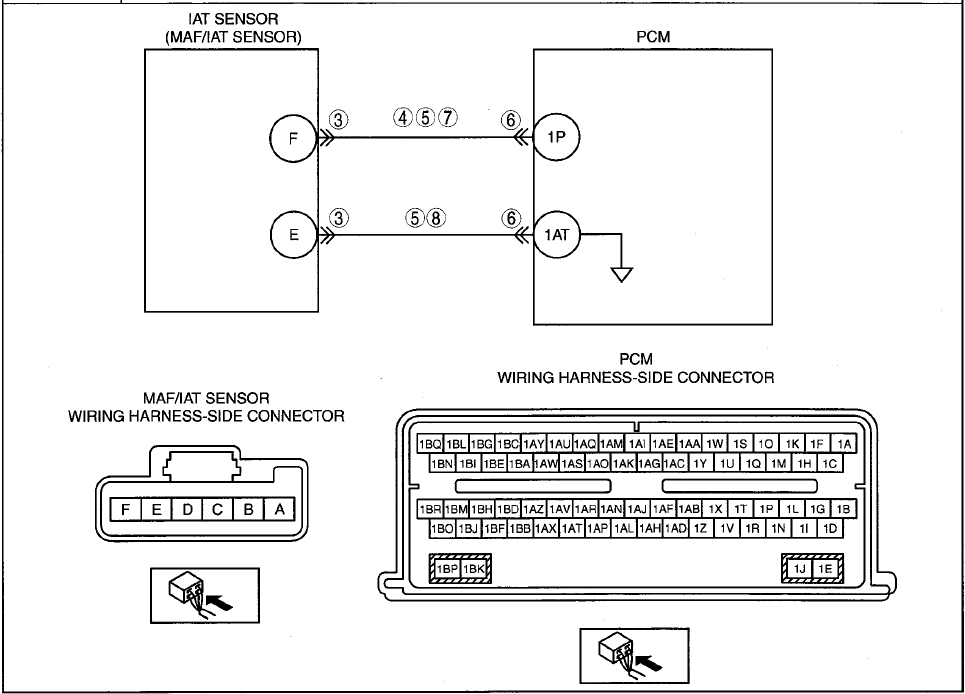

POSSIBLE CAUSE	Connector or terminal malfunction IAT sensor malfunction Short to power supply between MAF/IAT sensor terminal F and PCM terminal 1 P Open circuit between MAF/IAT sensor terminal F and PCM terminal 1 P Open circuit between MAF/IAT sensor terminal E and PCM terminal 1AT
Courtesy of MAZDA MOTORS CORP.
