Freeze frame data table

NOTE:
  • Refer to PID monitor table for confirm the engine control system operation status while the PCM does not store the DTC. (See PCM INSPECTION article
  • Freeze frame data items are not displayed, according to deleted DTC.

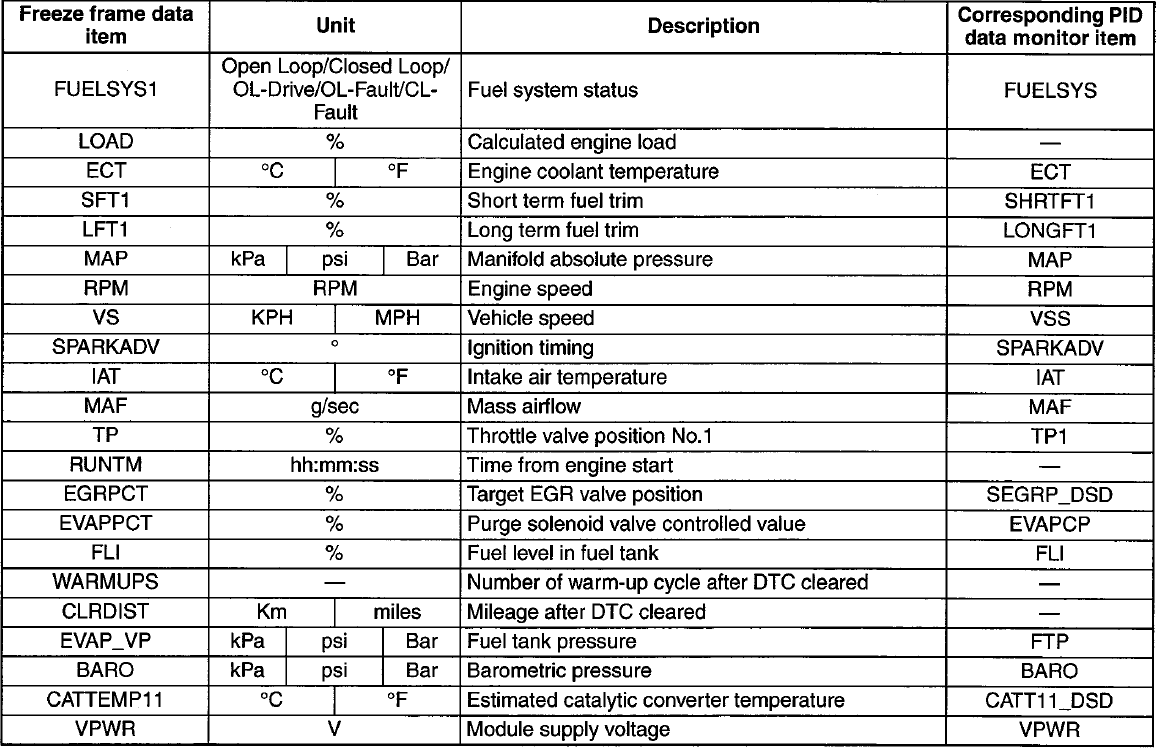

    • Fig 1: Freeze Frame Data Table (1 Of 2)
    G00511535Courtesy of MAZDA MOTORS CORP.

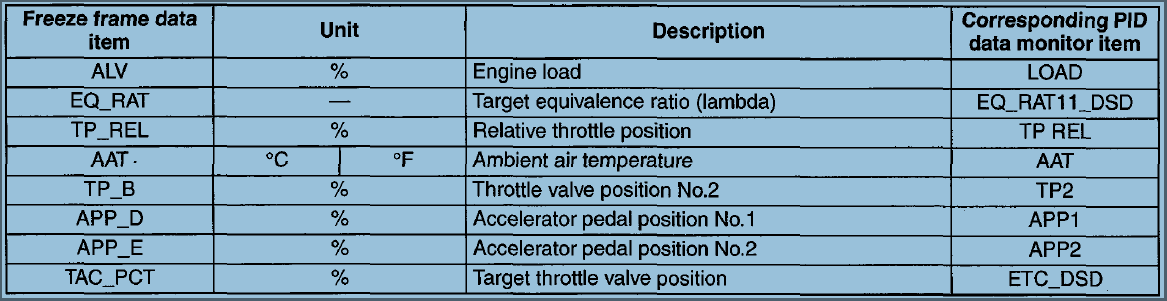

Fig 2: Freeze Frame Data Table (2 Of 2)
G00511536Courtesy of MAZDA MOTORS CORP.
