The Mazda Modular Diagnostic System (M-MDS)

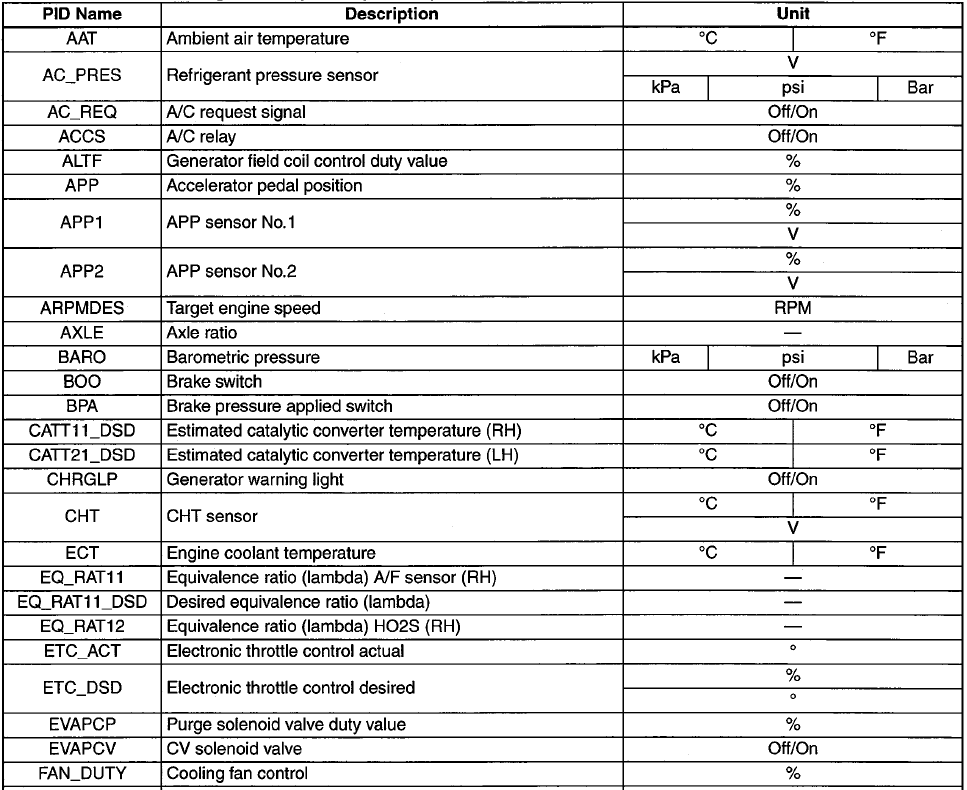

Fig 1: PID/Data Monitor Table (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

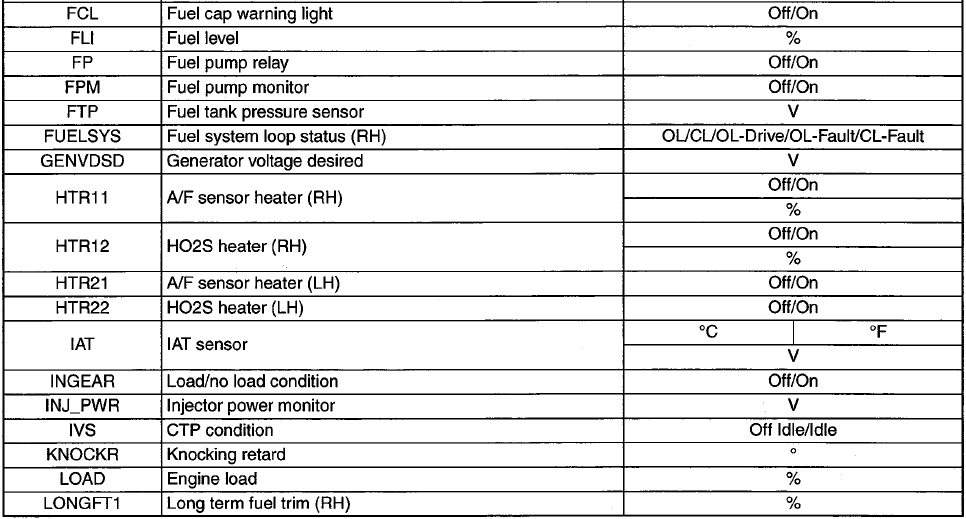

Fig 2: PID/Data Monitor Table (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

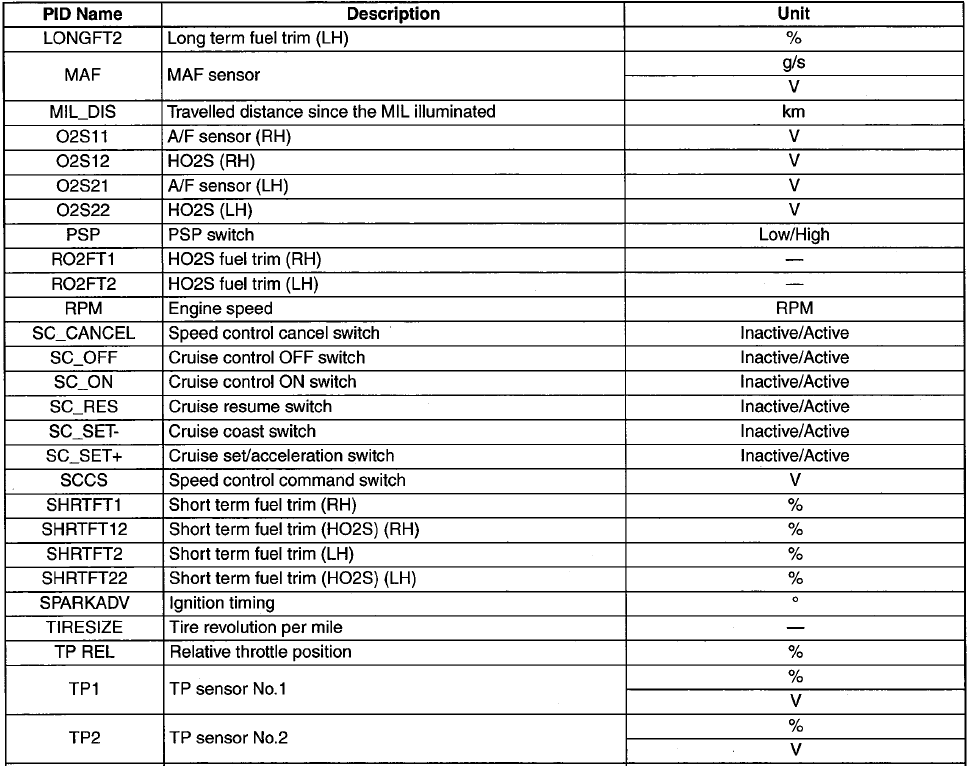

Fig 3: PID/Data Monitor Table (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

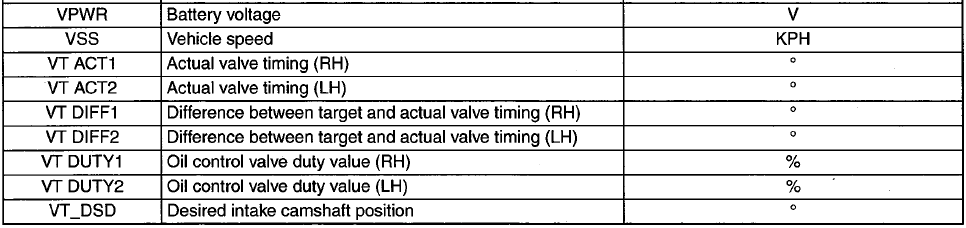

Fig 4: PID/Data Monitor Table (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
