Steering Wheel And Column Removal/Installation: Notes
WARNING:
- Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)
- Remove the dashboard under cover (driver side). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Remove the coil antenna (with advanced keyless entry and start system). (See COIL ANTENNA REMOVAL/INSTALLATION .)

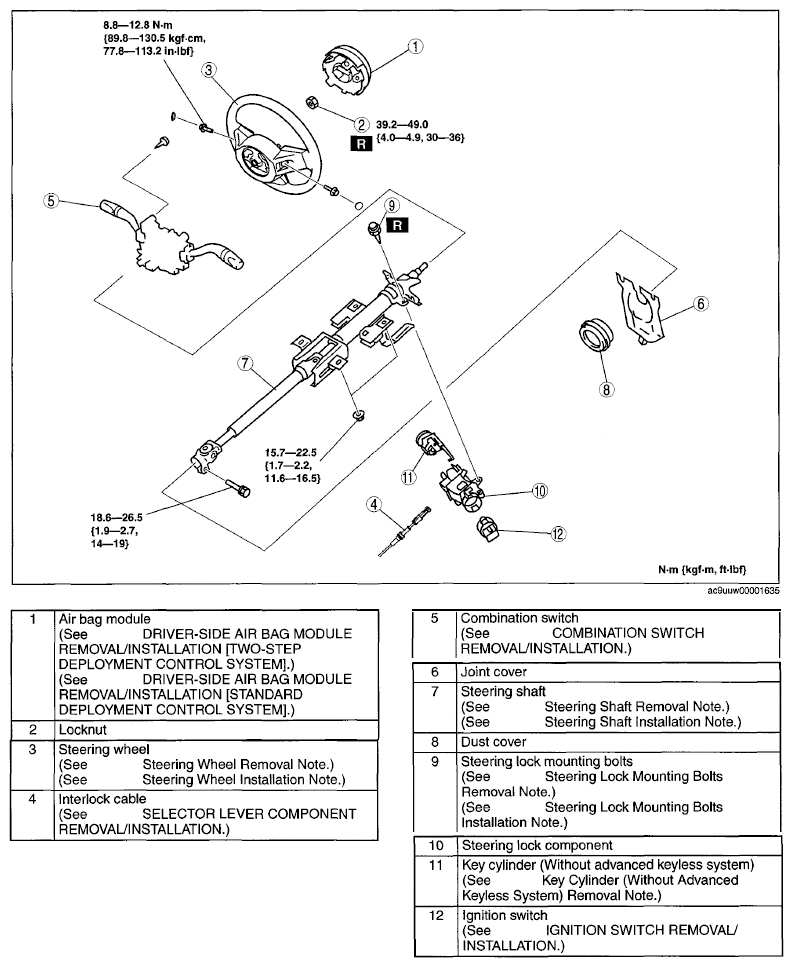

- Remove in the order indicated in the table in the figure.
- Install in the reverse order of removal.
- If the steering lock component of a vehicle equipped with the advanced keyless entry and start system is replaced, perform the following procedure after installation.
- Immobilizer system resetting (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [ADVANCED KEYLESS ENTRY AND START SYSTEM] .)
