Rear Abs Wheel-Speed Sensor Removal/Installation [AWD]

  1. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)
  2. Remove the seat side box. (See SEAT SIDE BOX REMOVAL/INSTALLATION .)
  3. Remove the third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
  4. Remove the rear scuff plate inner. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  5. Remove the third-row seat belt lower anchor installation bolt. (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
  6. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  7. Remove in the order indicated in the table.

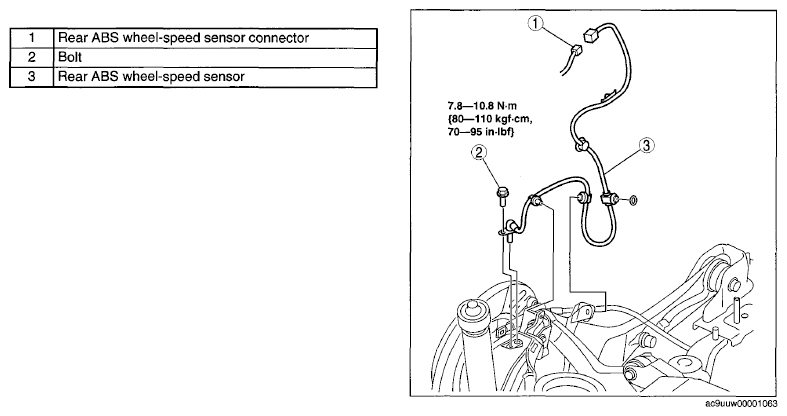

    Fig 1: Rear ABS Wheel-Speed Sensor With Torque Specifications (AWD)
    G06727856Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
