DTC P1289: CHT Sensor Circuit High Input: Notes

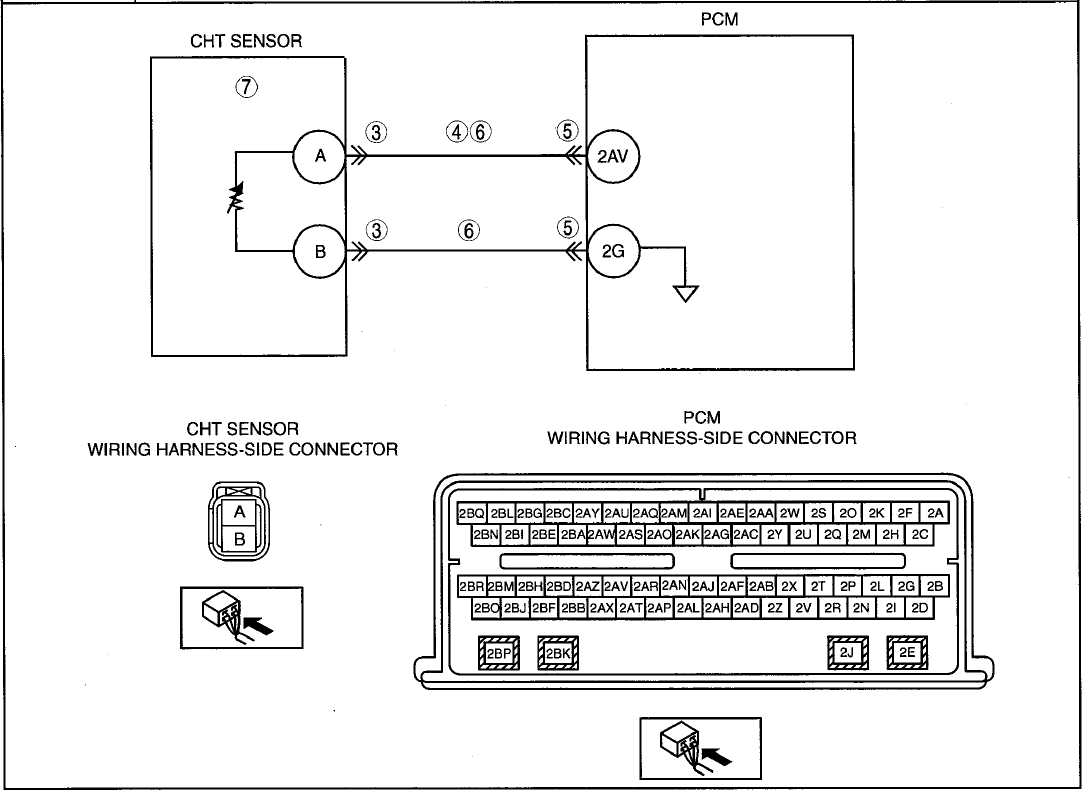

DTC P1289 CHART (MZI-3.7)
| DTC P1289 |
CHT sensor circuit high input |
| DETECTION CONDITION |
- Indicates a CHT sensor circuit open.
|
| POSSIBLE CAUSE |
- Short to power supply in wiring harness between CHT sensor terminal A and PCM terminal 2AV
- Connector or terminal malfunction
- Open circuit in wiring harness between CHT sensor terminal B and PCM terminal 2G
- Open circuit in wiring harness between CHT sensor terminal A and PCM terminal 2AV
- CHT sensor malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
