Position Memory Control Module Removal/Installation

Operate the power seat switch and move the seat cushion forward and upward.
Turn the ignition switch to the LOCK position.
Disconnect the negative battery cable and wait 1 min or more.
Remove the driver-side front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the connector.

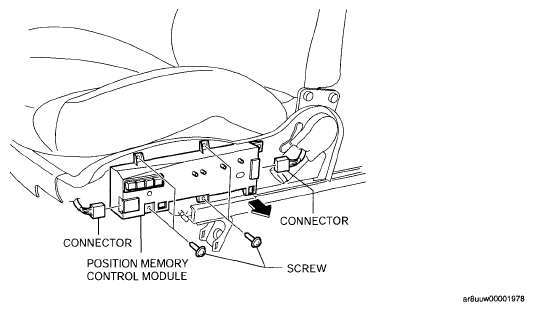

Fig 1: Identifying Position Memory Control Module Components
Courtesy of MAZDA MOTORS CORP.
Remove the screw.
Remove the position memory control module.
Install in the reverse order of removal.
