Audio Control Switch Removal/Installation

NOTE:

• For vehicles with the cruise control system, the audio control switch harness and the cruise control switch harness are united, therefore they cannot be separated.

1. Disconnect the negative battery cable and wait for 1 min or more.
2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

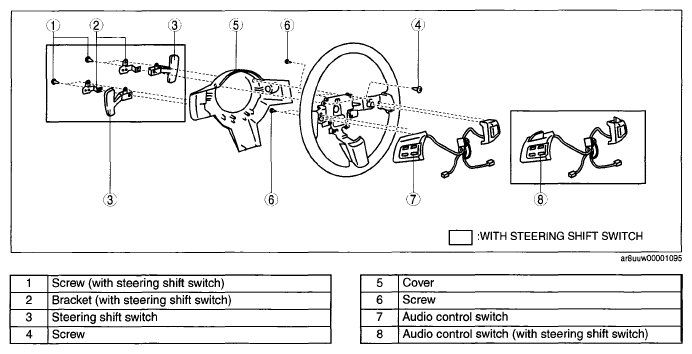

Fig 1: Identifying Steering Shift Switch, Audio Control Switch, Bracket, Cover And Screw

Courtesy of MAZDA MOTORS CORP.
