Transmitter Id Code Registration [With Keyless Entry System]

NOTE:

• When programming the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
• After ID code programming, remove the key from the steering lock and verify that all doors lock/unlock normally using the transmitter.

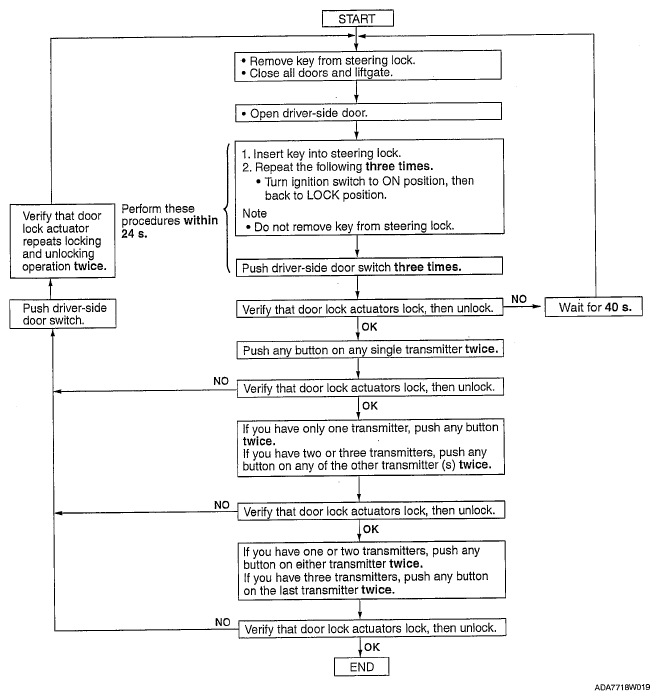

Fig 1: Transmitter ID Code Registration (With Keyless Entry System) - Flow Chart

Courtesy of MAZDA MOTORS CORP.
