Front Abs Wheel-Speed Sensor Removal/Installation

NOTE:

• If there is any malfunction in the front ABS wheel-speed sensor unit, replace the wheel hub component. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION .)

1. Slightly bend back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

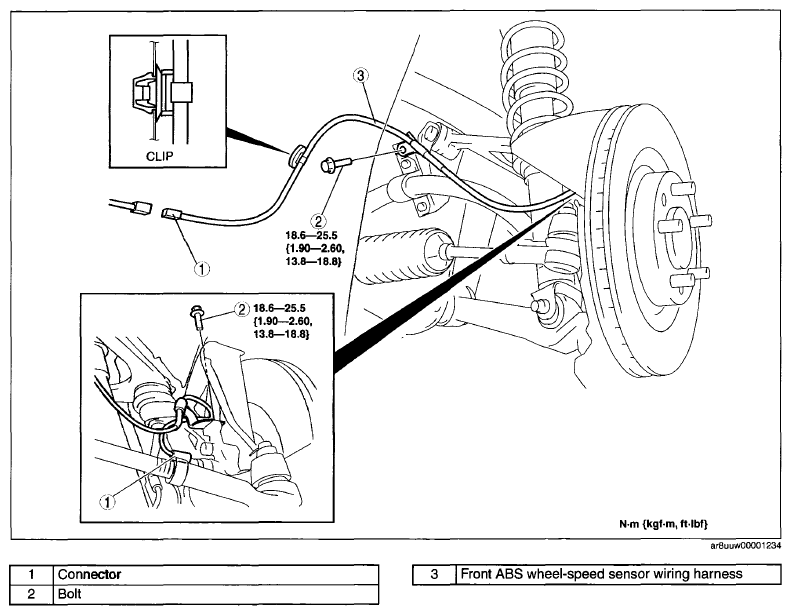

Fig 1: Front ABS Wheel-Speed Sensor Removal/Installation Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
