Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

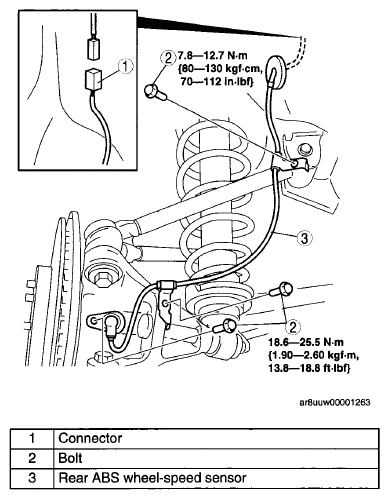

    Fig 1: Rear ABS Wheel-Speed Sensor Removal/Installation Components With Torque Specifications
    G05985195Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
