Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and DSC HU/CM.
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Remove the brake pipe.

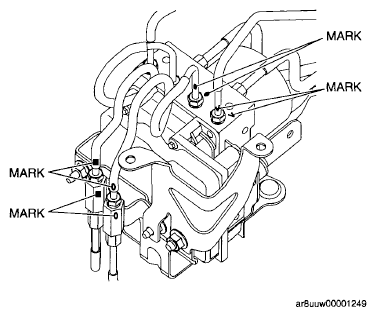

Fig 1: Identifying Alignment Mark On Brake Pipe
G05985204Courtesy of MAZDA MOTORS CORP.
