Circuit Open/Short Inspection: Notes

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
2. Inspect the following wiring harnesses for open or short (continuity check.)

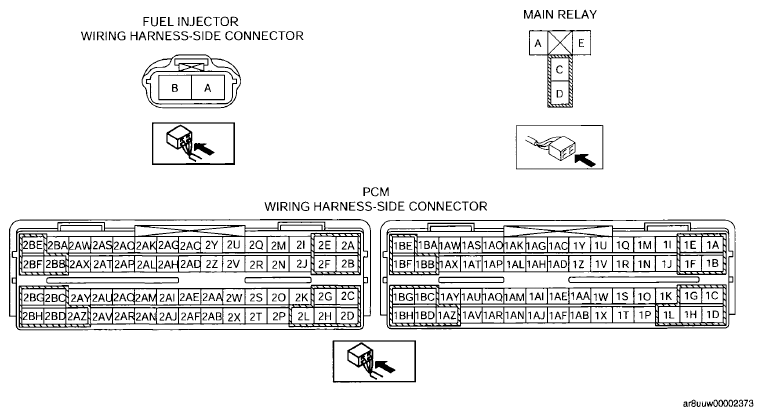

Fig 1: Identifying PCM, Fuel Injector And Main Relay Connector Terminals

Courtesy of MAZDA MOTORS CORP.
