RX-8 R3, 1.3 2
›
Repair and Diagnosis
›
Engine Performance
›
Remove, Overhaul & Install
›
Engine Control System
›
Control System Diagram
Control System Diagram

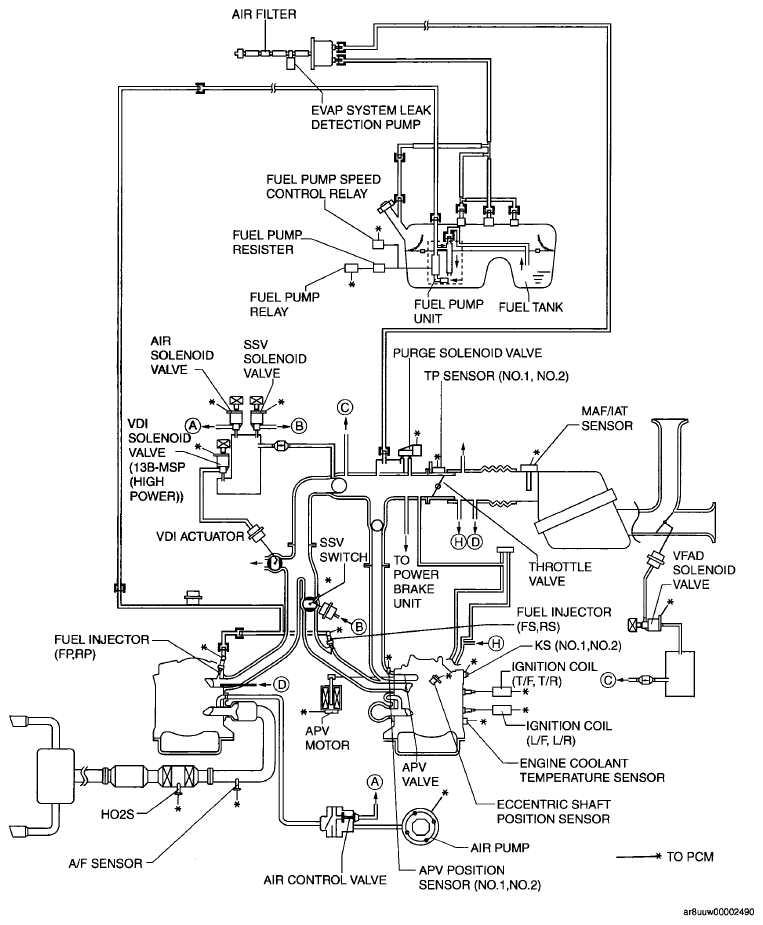

Fig 1: Control System Diagram
