RX-8 R3, 1.3 2
›
Repair and Diagnosis
›
Engine Performance
›
System
›
On-Board Diagnostic [Engine Control System]
›
Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart

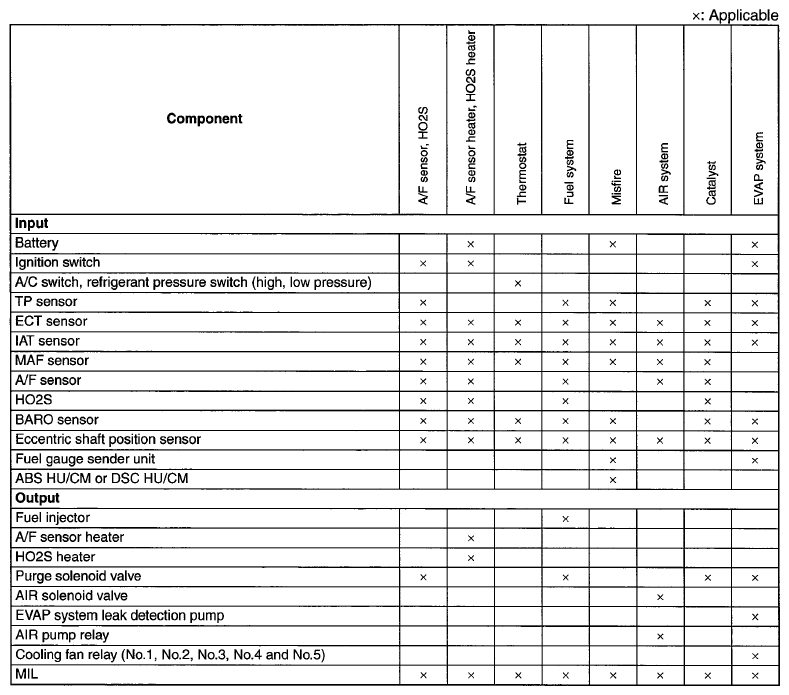

Fig 1: Monitoring System And Control System Device Relationship Chart
