RX-8 R3, 1.3 2
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End ViewS
›
Combined Sensor Connector End View
Combined Sensor Connector End View

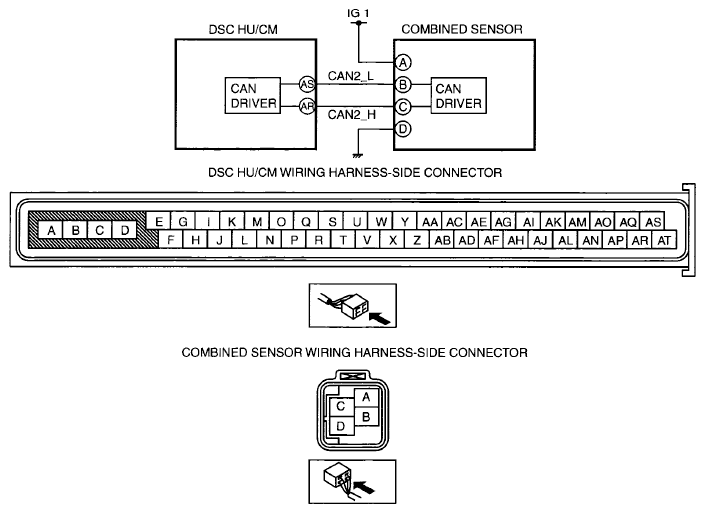

Fig 1: Combined Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
