RX-8 R3, 1.3 2
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End ViewS
›
Intermediate Connector End View And EPS Motor Connector End View
Intermediate Connector End View And EPS Motor Connector End View

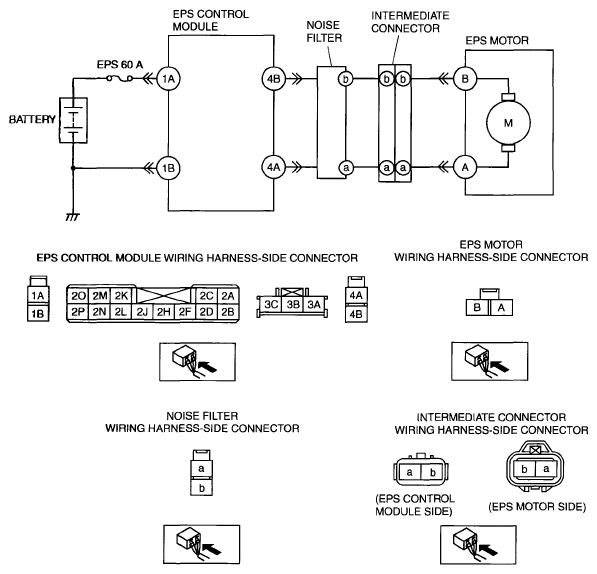

Fig 1: Intermediate Connector End View And EPS Motor Connector End View
