Outer Mirror Glass Assembly Note

1. Press area A of the mirror glass into the base to attach pin A.
2. Press areas B of the mirror glass into the base to attach pins B.

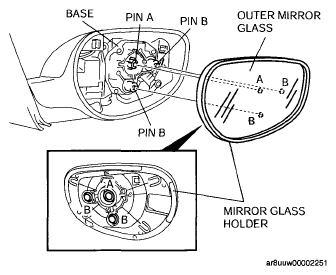

Fig 1: Identifying Mirror Glass Holder And Outer Mirror Glass

Courtesy of MAZDA MOTORS CORP.
