Front Abs Wheel-Speed Sensor Removal/Installation

1. Slightly bend back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the figure below.
3. Install in the reverse order of removal.

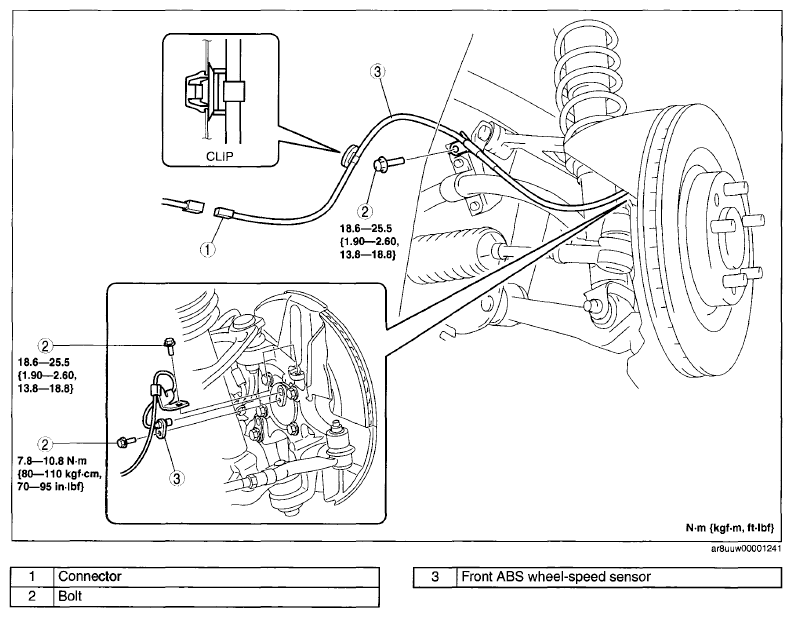

Fig 1: Front ABS Wheel-Speed Sensor Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
