A/F Sensor Circuit Open/Short Inspection

1. Disconnect the PCM connector.
2. Disconnect the A/F sensor connector.

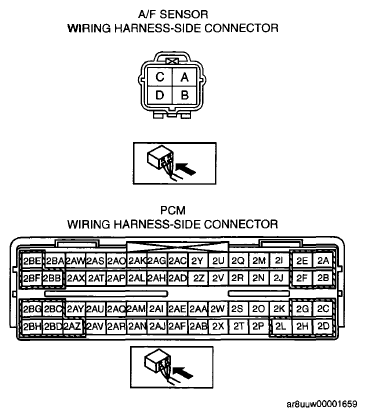

3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

Open circuit

• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

• A/F sensor terminal A and PCM terminal 2AD
• A/F sensor terminal B and PCM terminal 2Z

Short circuit

• If there is continuity, there is a short circuit. Repair or replace the wiring harness.

• A/F sensor terminal A and body ground
• A/F sensor terminal A and power supply
• A/F sensor terminal B and body ground
• A/F sensor terminal B and power supply
