Symptom Troubleshooting [Engine Mechanical]
›
Quick Diagnostic Chart
Quick Diagnostic Chart

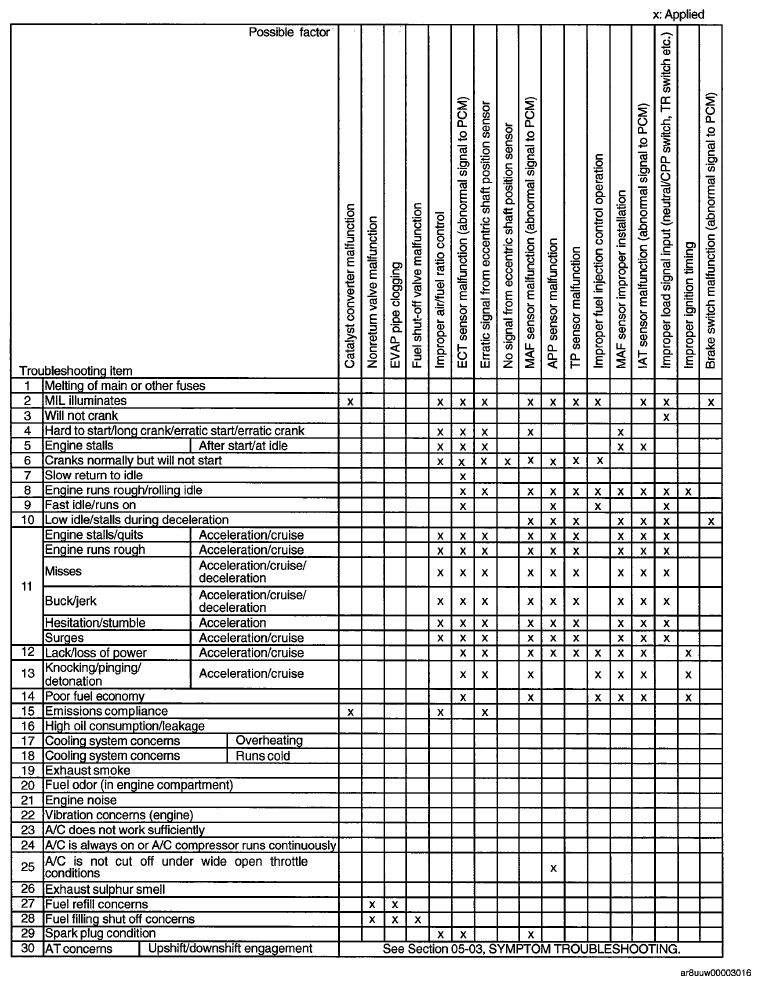

Fig 1: Quick Diagnostic Chart - 13B-MSP (1 Of 6)
Courtesy of MAZDA MOTORS CORP.

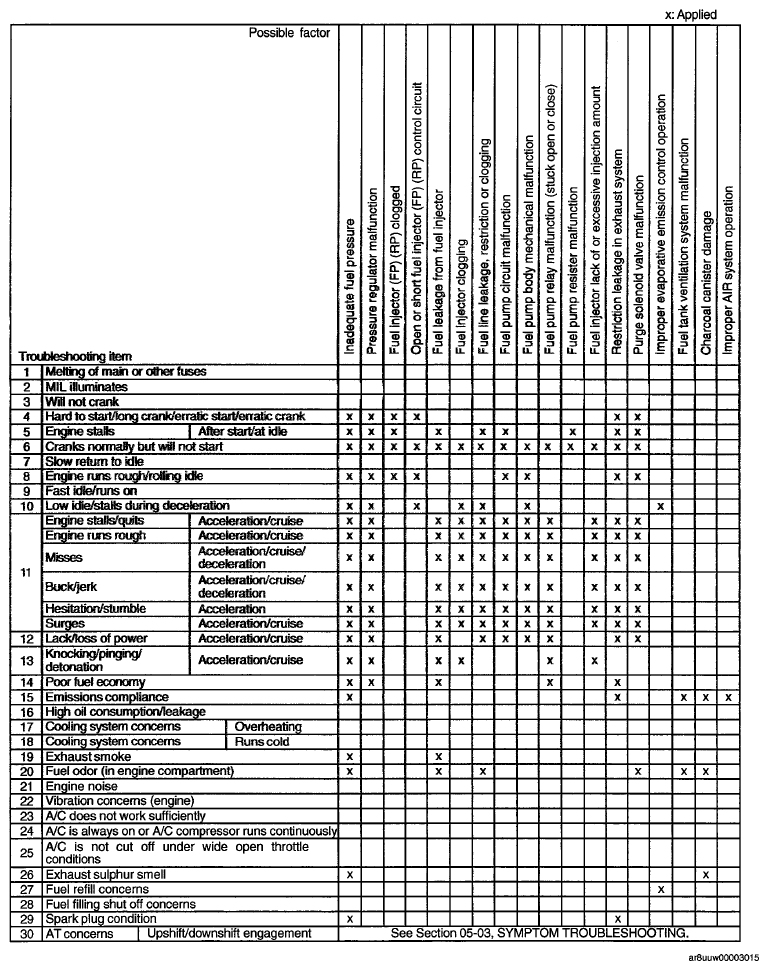

Fig 2: Quick Diagnostic Chart - 13B-MSP (2 Of 6)
Courtesy of MAZDA MOTORS CORP.

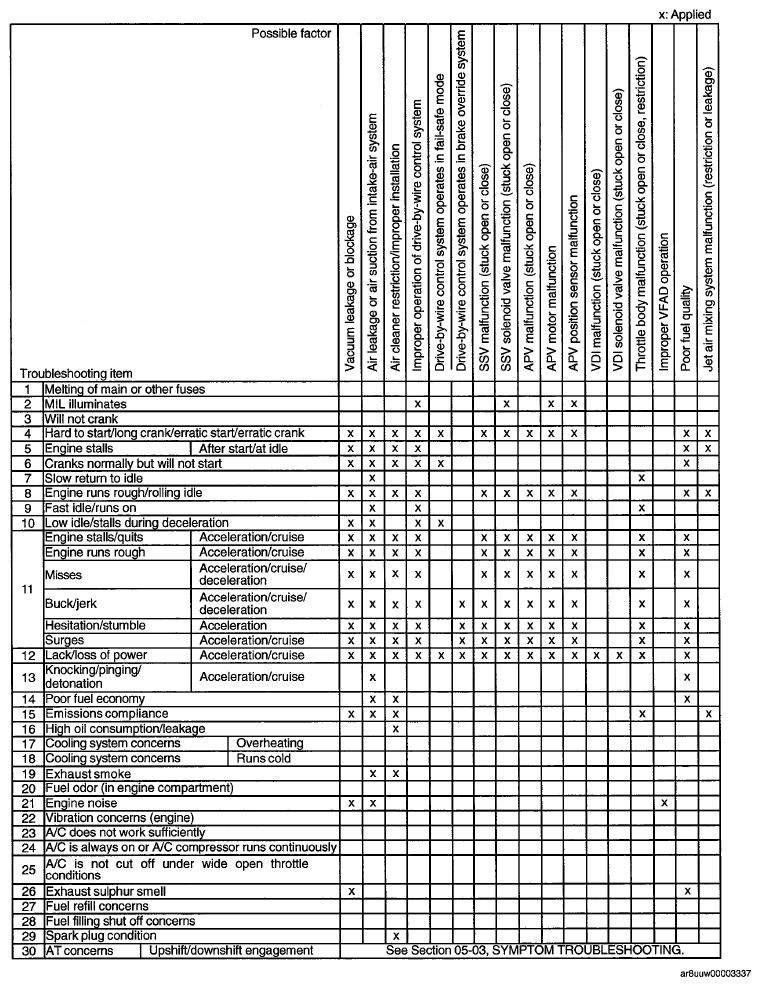

Fig 3: Quick Diagnostic Chart - 13B-MSP (3 Of 6)
Courtesy of MAZDA MOTORS CORP.

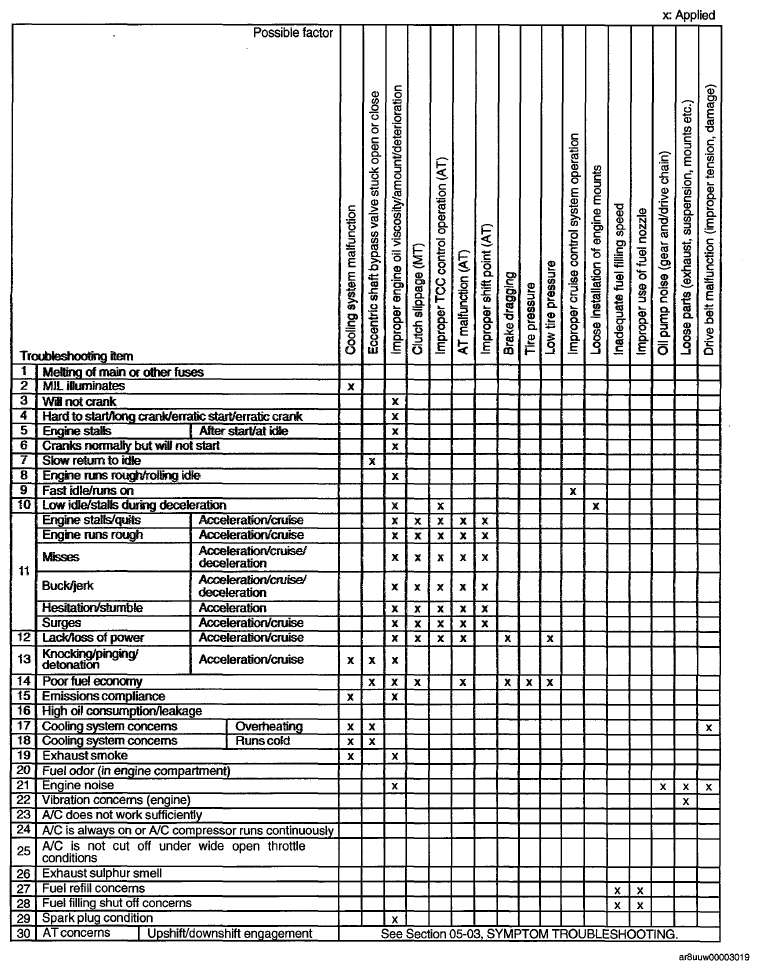

Fig 4: Quick Diagnostic Chart - 13B-MSP (4 Of 6)
Courtesy of MAZDA MOTORS CORP.

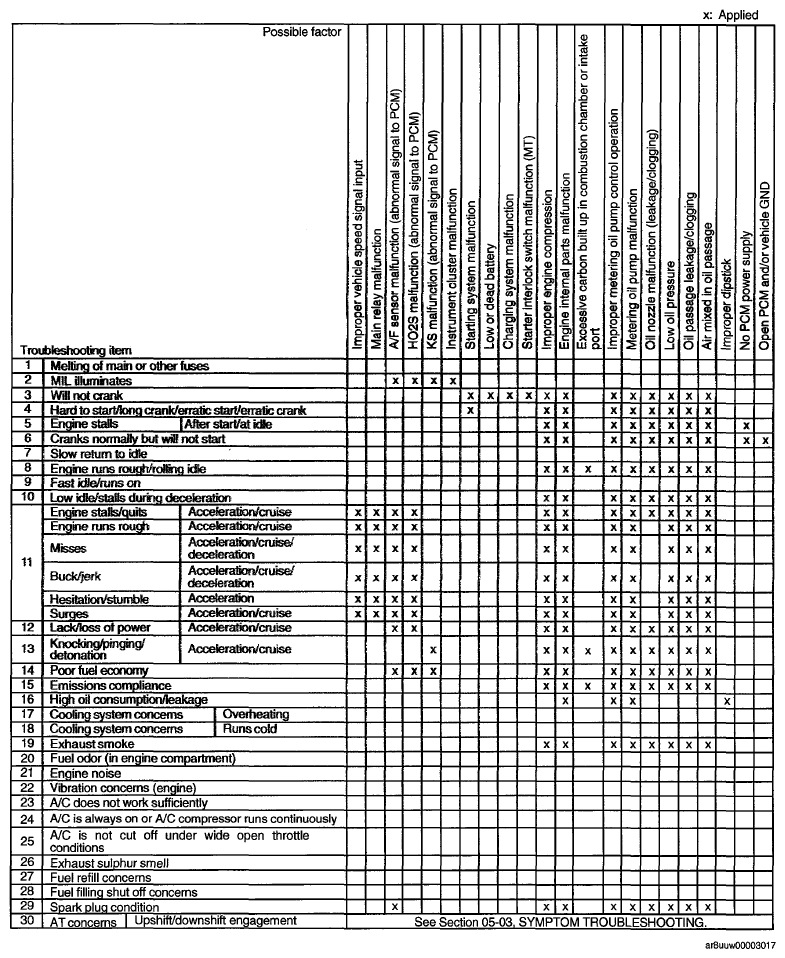

Fig 5: Quick Diagnostic Chart - 13B-MSP (5 Of 6)
Courtesy of MAZDA MOTORS CORP.

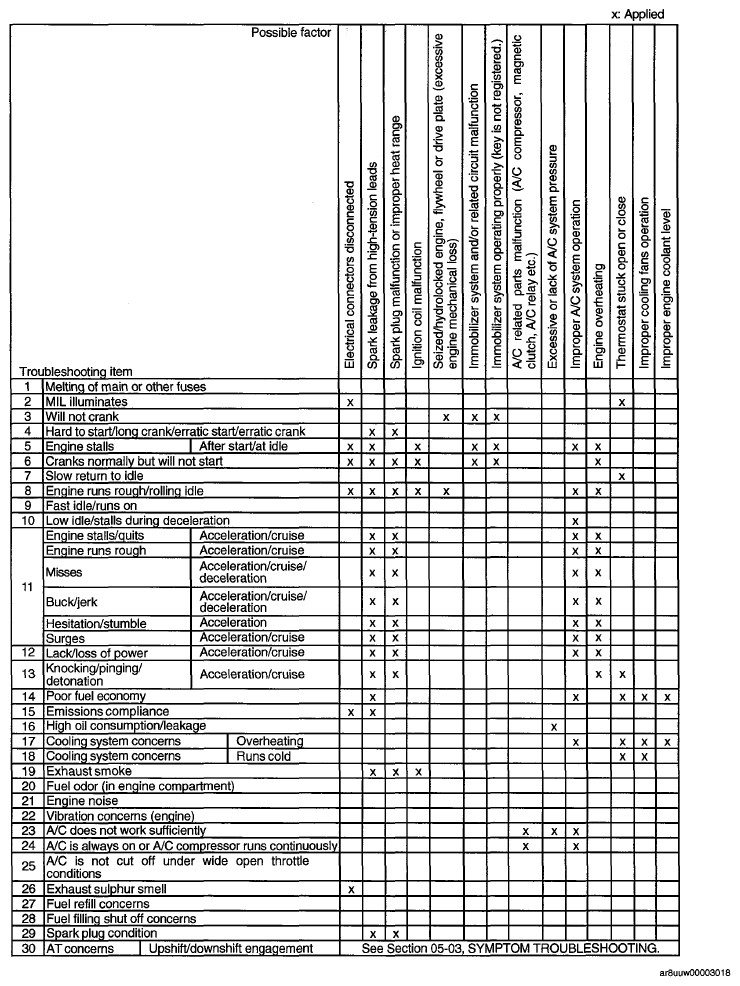

Fig 6: Quick Diagnostic Chart - 13B-MSP (6 Of 6)
Courtesy of MAZDA MOTORS CORP.
