Speed Control Switch Removal/Installation

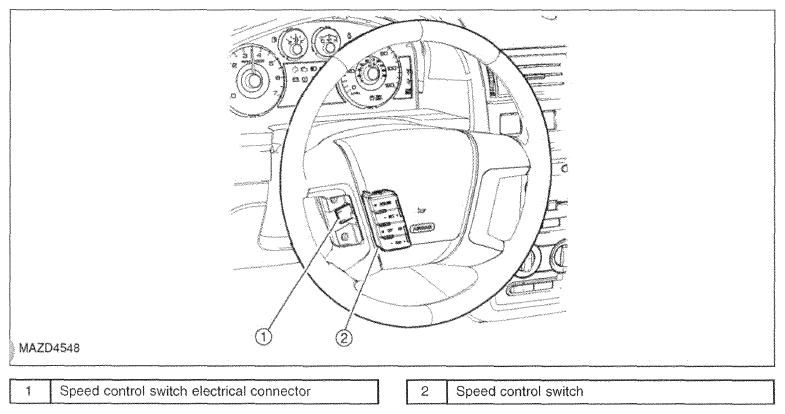

Fig 1: Identifying Speed Control Switch And Electrical Connector

Courtesy of MAZDA MOTORS CORP.

1. Remove the speed control switch by pulling the switch toward the rear of the vehicle.
   • Disconnect the electrical connector.
2. To install, reverse the removal procedure.
