Crankshaft Position (CKP) Sensor Removal/Installation - 3.0L
›
Notes
Crankshaft Position (CKP) Sensor Removal/Installation - 3.0L: Notes

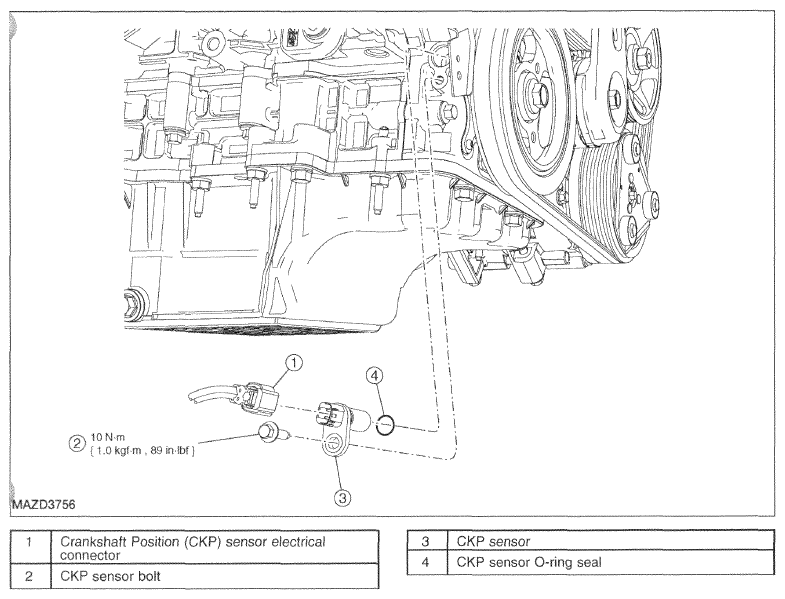

Fig 1: Crankshaft Position (CKP) Sensor Replacement Components With Torque Specifications (3.0L)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
