Crankshaft Position (CKP) Sensor Removal/Installation - Hybrid: Notes

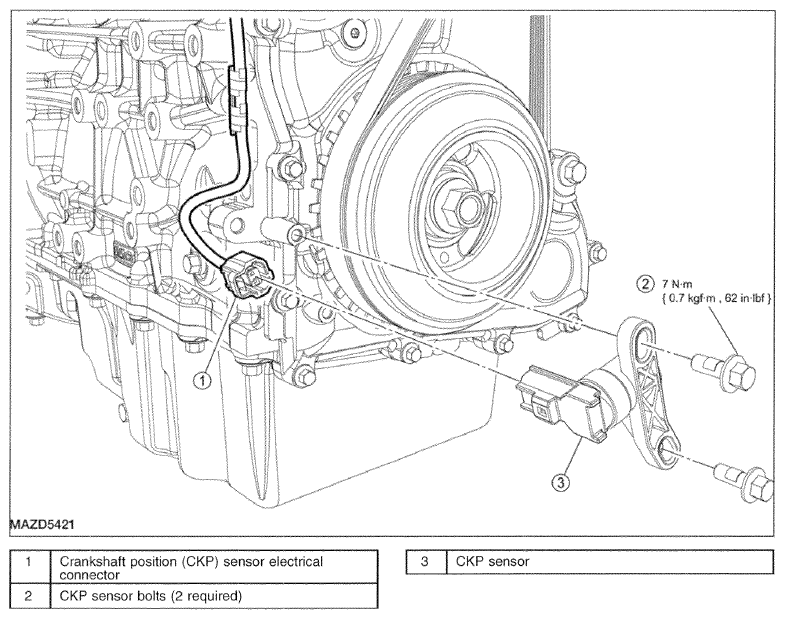

Fig 1: Crankshaft Position (CKP) Sensor Replacement Components With Torque Specifications (Hybrid)
G07434986Courtesy of MAZDA MOTORS CORP.
