Powertrain Control Module (Pcm) Removal/Installation - 2.5L And 3.0L: Notes

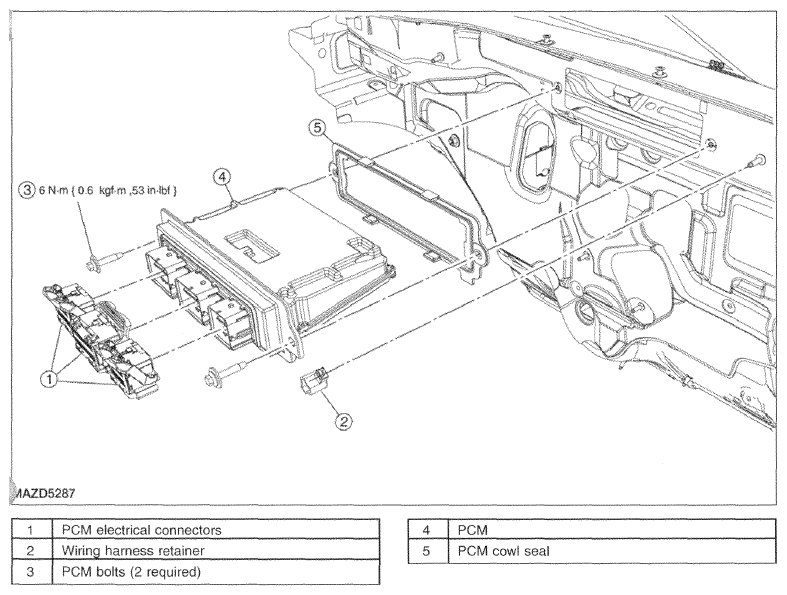

Fig 1: Powertrain Control Module (PCM) Replacement Components With Torque Specifications (2.5L And 3.0L)
G07434969Courtesy of MAZDA MOTORS CORP.
