Engine Ignition Components - Exploded View
›
Notes
Engine Ignition Components - Exploded View: Notes

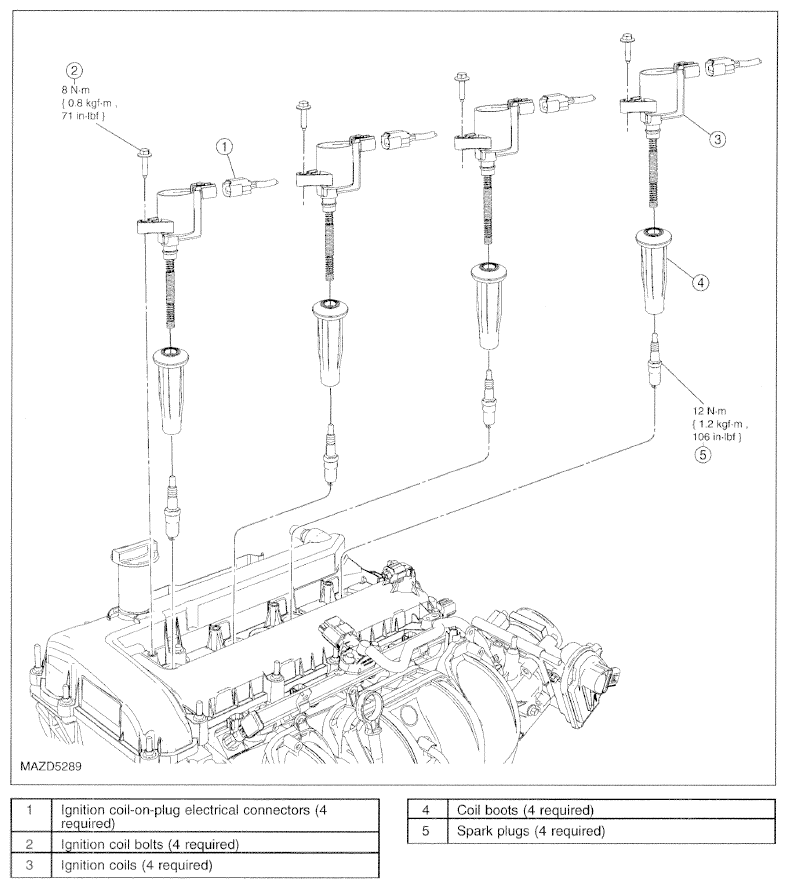

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications - 2.5L
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
