Engine Ignition - RH

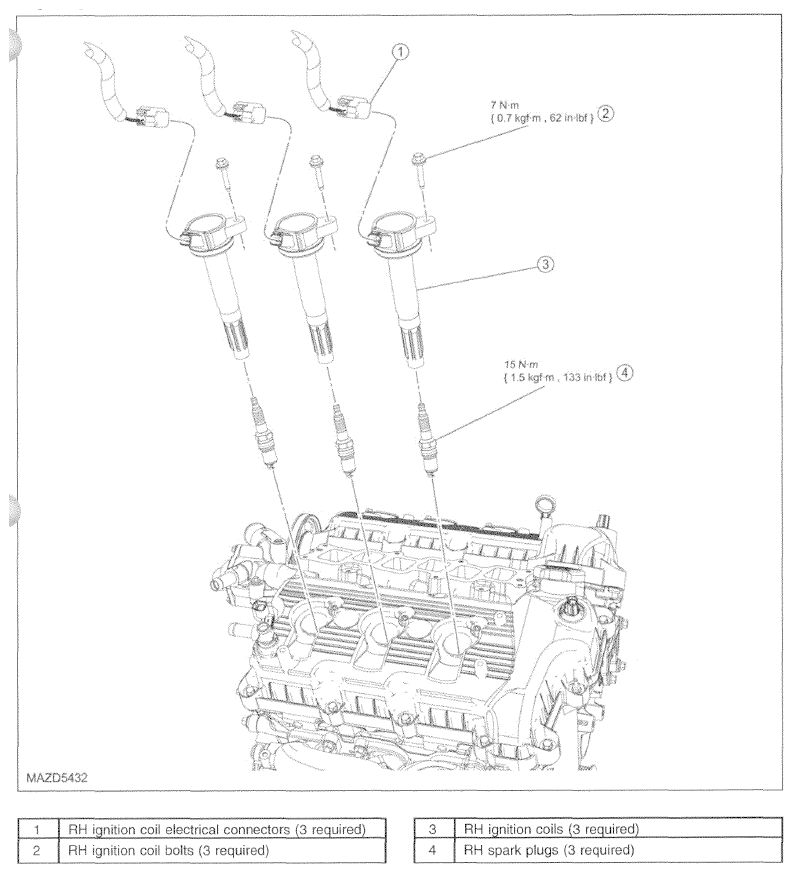

Fig 1: Exploded View Of Engine Ignition Components (RH) With Torque Specification - 3.0L
G07435401Courtesy of MAZDA MOTORS CORP.
