Crankshaft Position (CKP) Sensor Removal/Installation

CAUTION:
  • When replacing the CKP sensor, make sure there is no foreign material on it such as metal shavings. If it is installed with foreign material, the sensor output signal will malfunction resulting from fluctuation in magnetic flux and cause a deterioration in engine control.
  1. Disconnect the negative battery cable.
  2. Remove the splash shield.

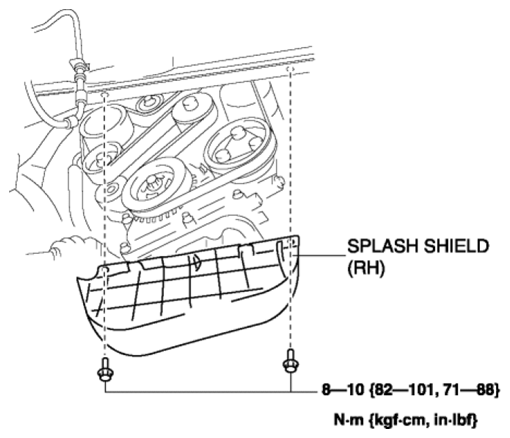

    Fig 1: Splash Shield And Bolts With Torque Specifications
    G08107431
  3. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  4. Disconnect the CKP sensor connector.
  5. Remove the CKP sensor.

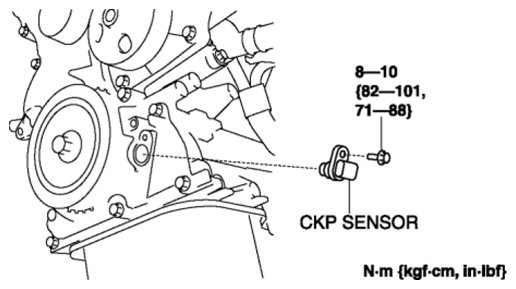

    Fig 2: CKP Sensor Bolt With Torque Specifications
    G08107432
  6. Install in the reverse order of removal.
