Mazda
›
2012
›
2 Sport, 1.5L Eng VIN Y, Automatic Trans
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belt System
›
Location Index
Location Index

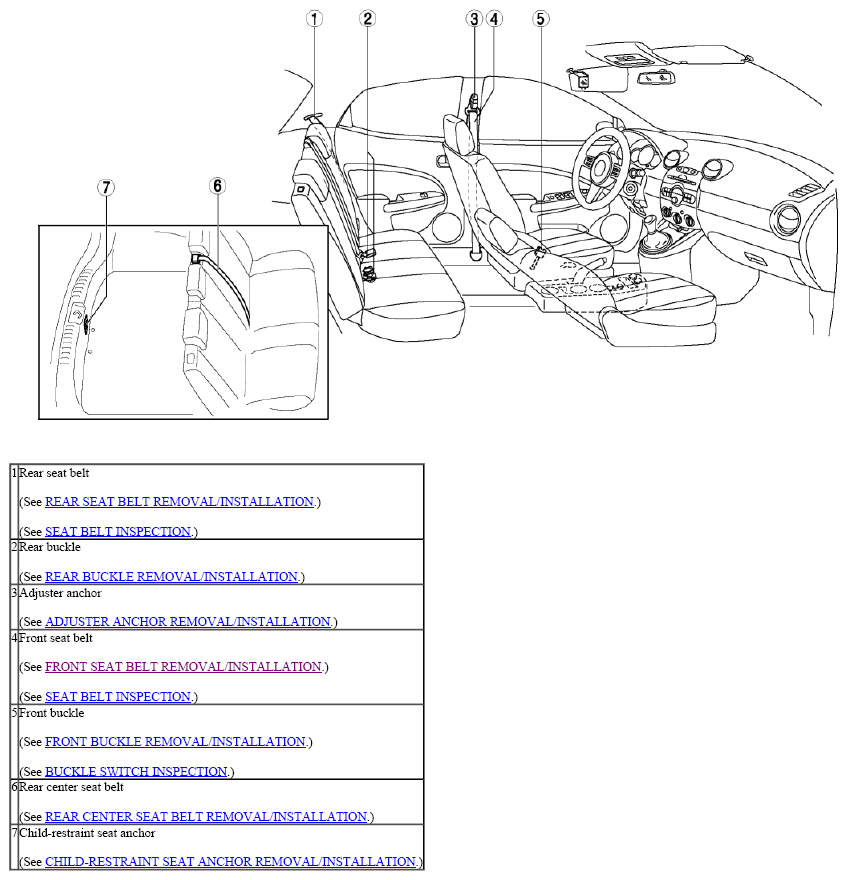

Fig 1: Identifying Seat Belt System Components Location
