Selector Lever component Removal/Installation

Disconnect the selector lever component connector.
1. Disconnect the negative battery cable.
2. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
3. Remove the front console component. (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION .)
4. Disconnect the selector lever component connector.

  Fig 1: Identifying Selector Lever Component Connector
Remove the selector lever component.
1. Disconnect the interlock cable from the selector lever component.

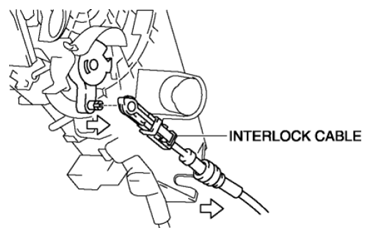

  Fig 2: Interlock Cable And Selector Lever
2. Disconnect the selector cable from the selector lever component.

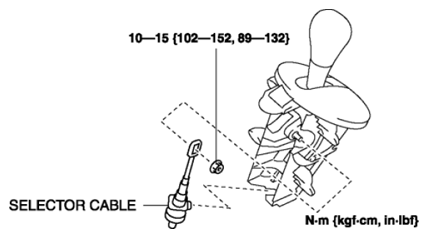

  Fig 3: Selector Cable And Selector Lever With Torque Specifications
3. Remove the selector lever component.

  Fig 4: Selector Lever Components With Torque Specifications
Install in the reverse order of removal.
